Technical sheet
Typology
Architectural Heritage
Protection
Monumento Nacional (1910) | Historic centre of Elvas - UNESCO World Heritage (2012)
Period 16th-17th centuries
Author(s)
Francisco de Arruda
Date
2005 - 2006
Service
Conservation-restoration
Work

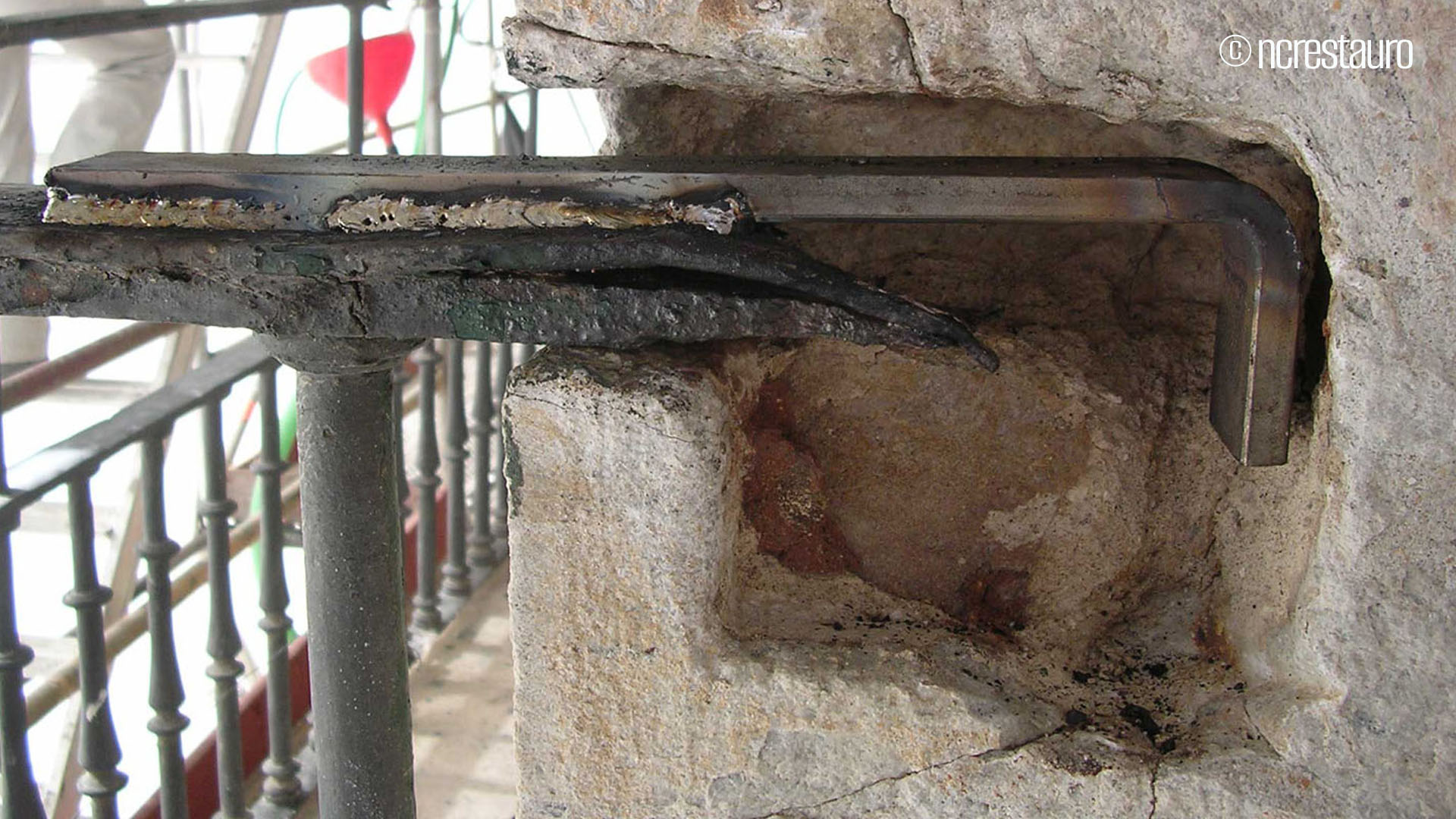

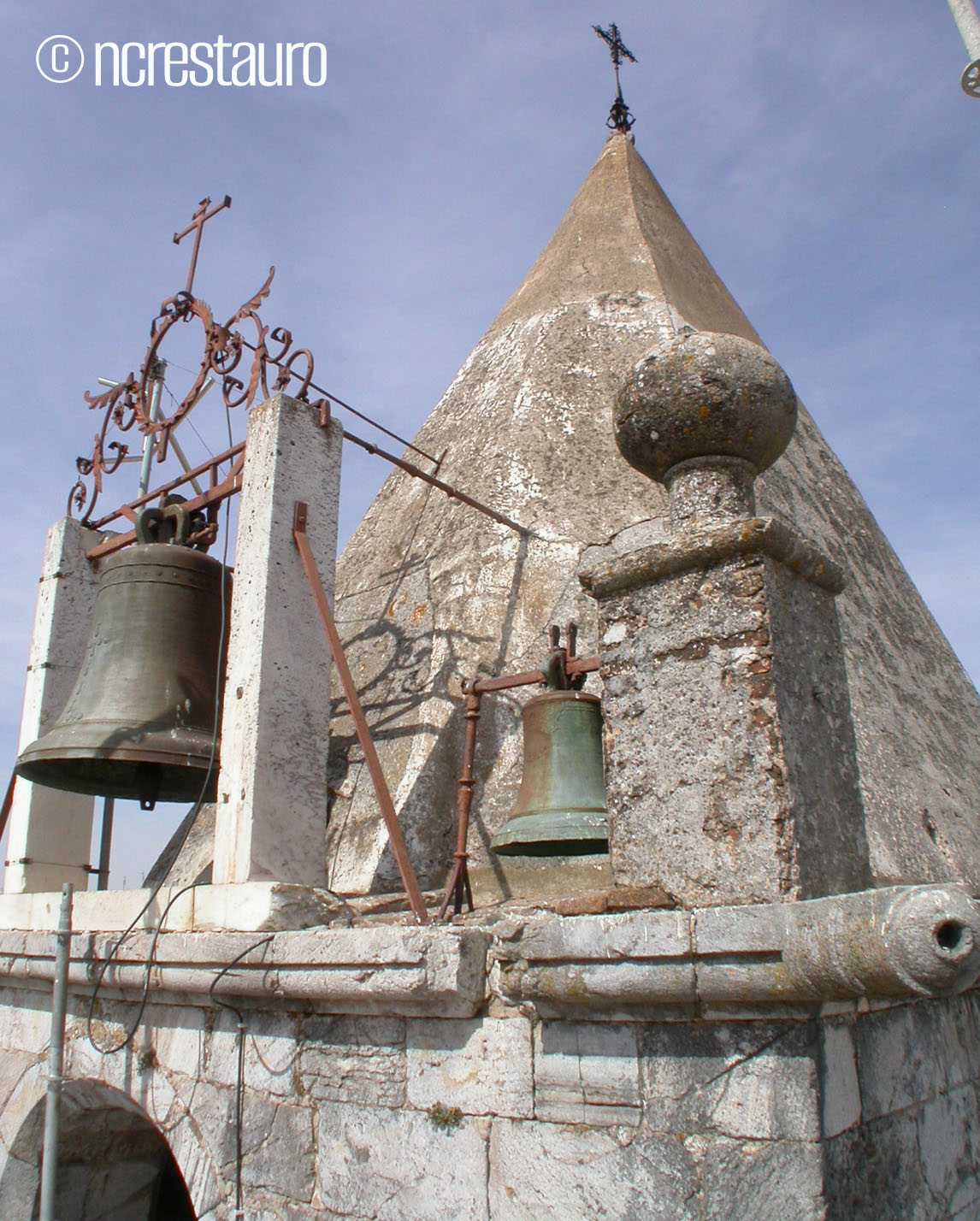

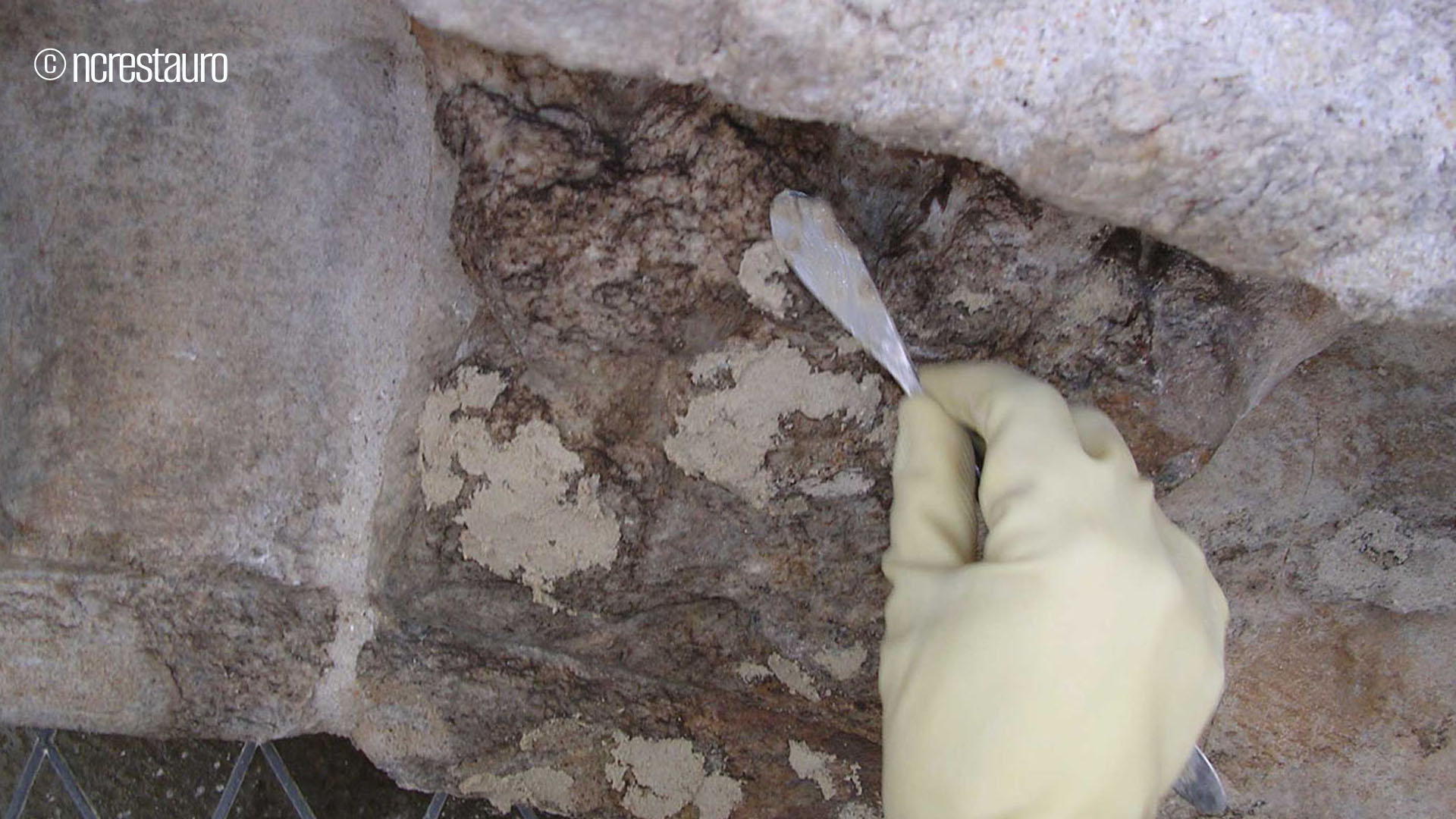

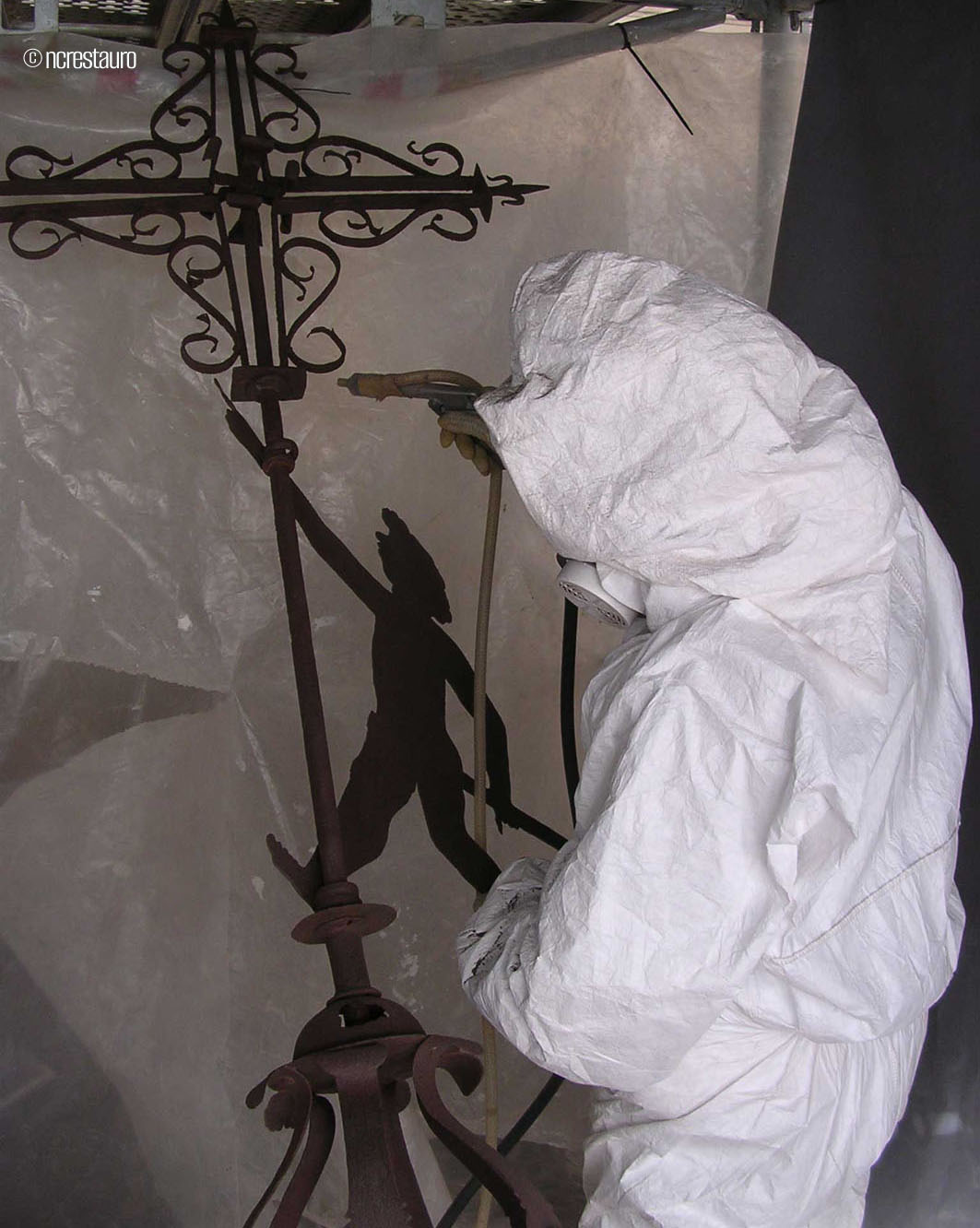

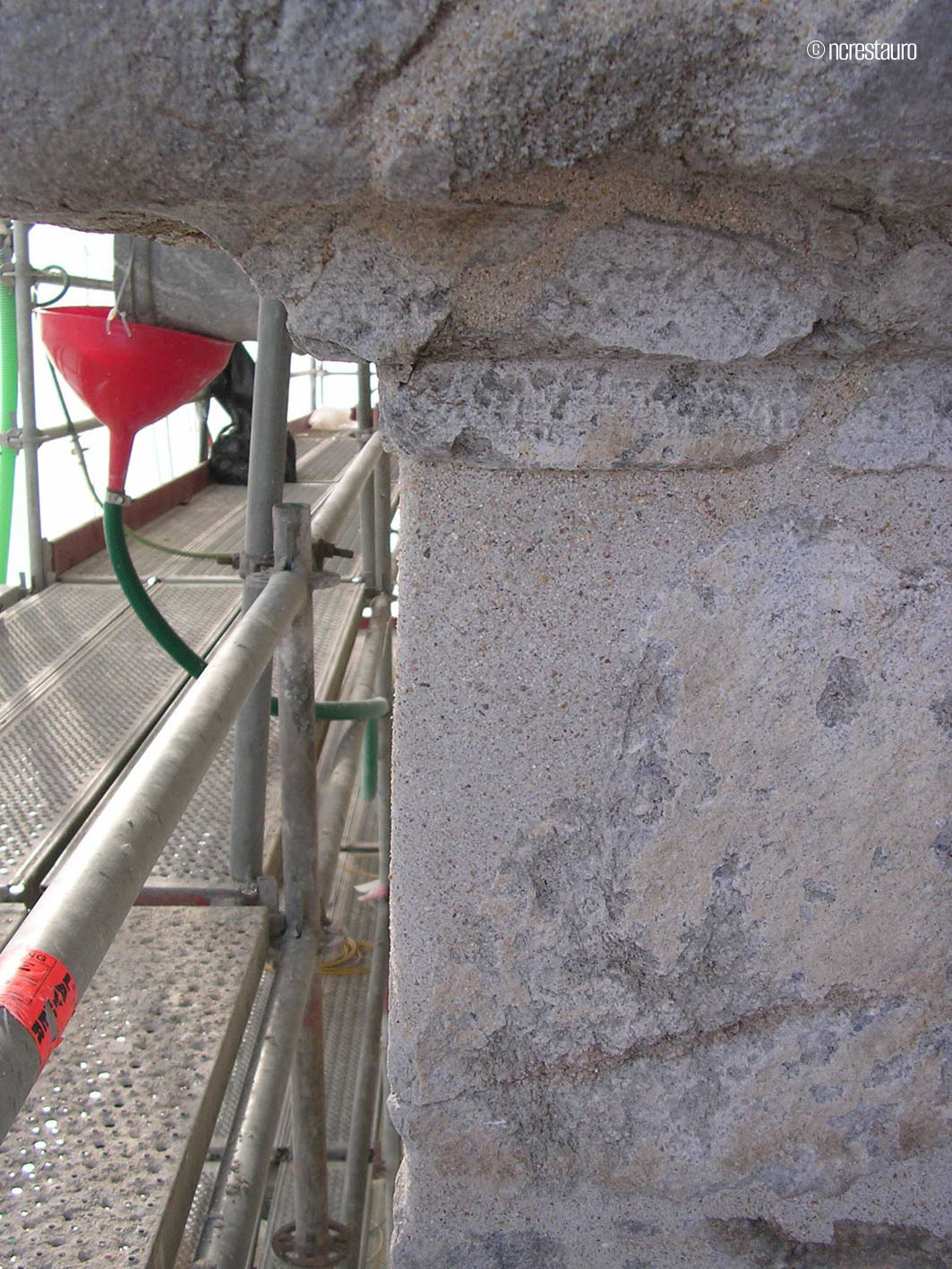

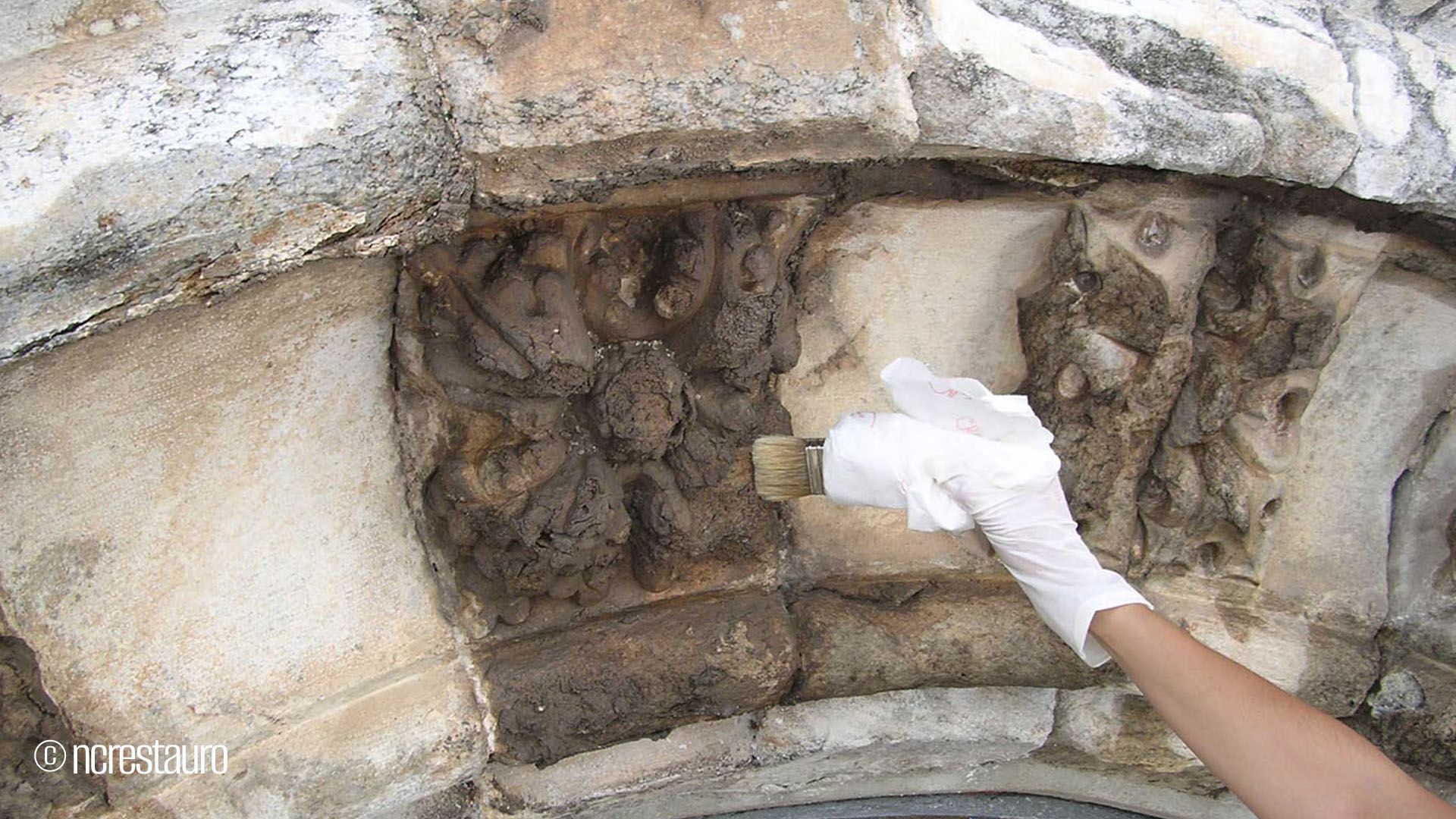

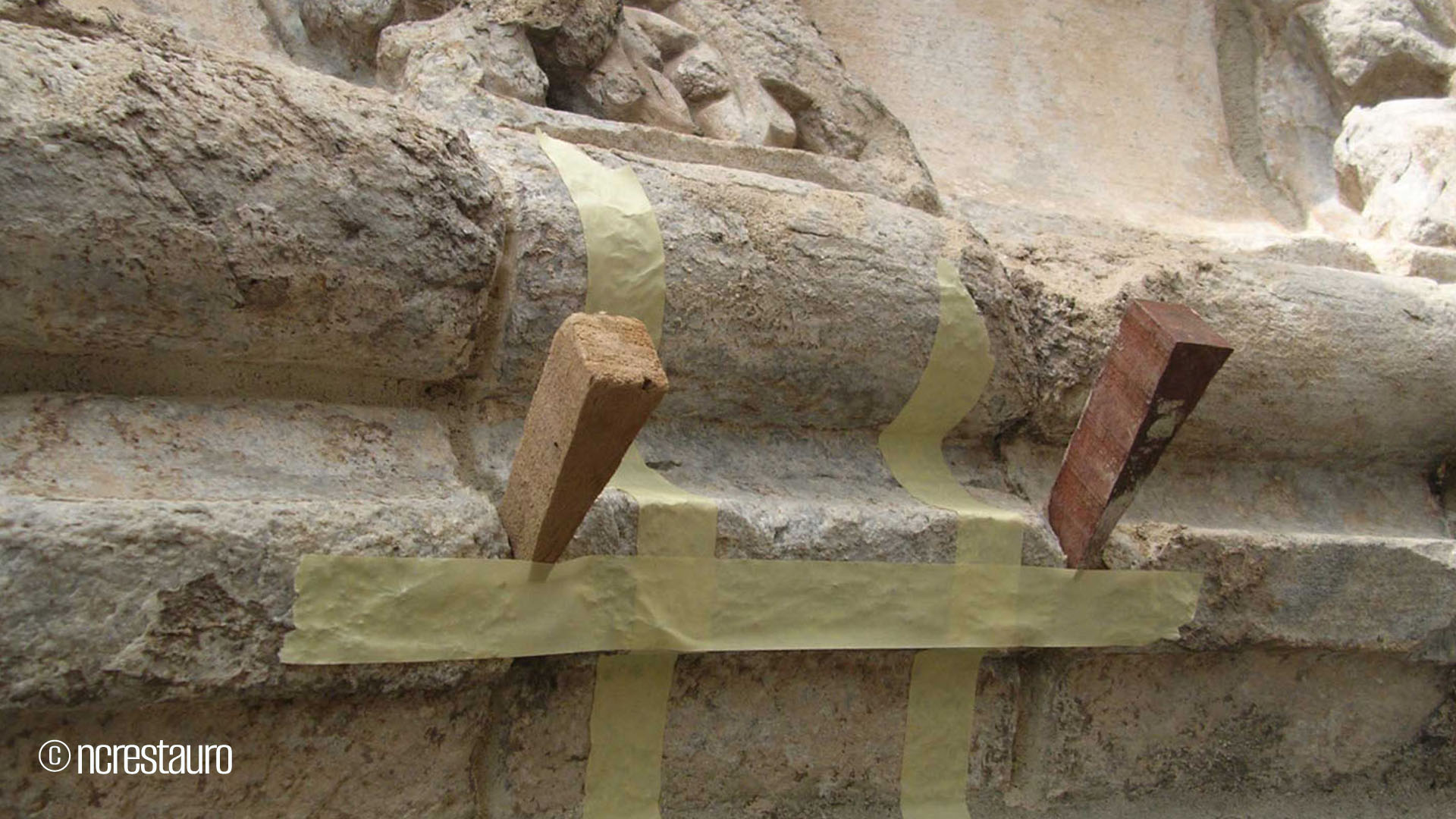

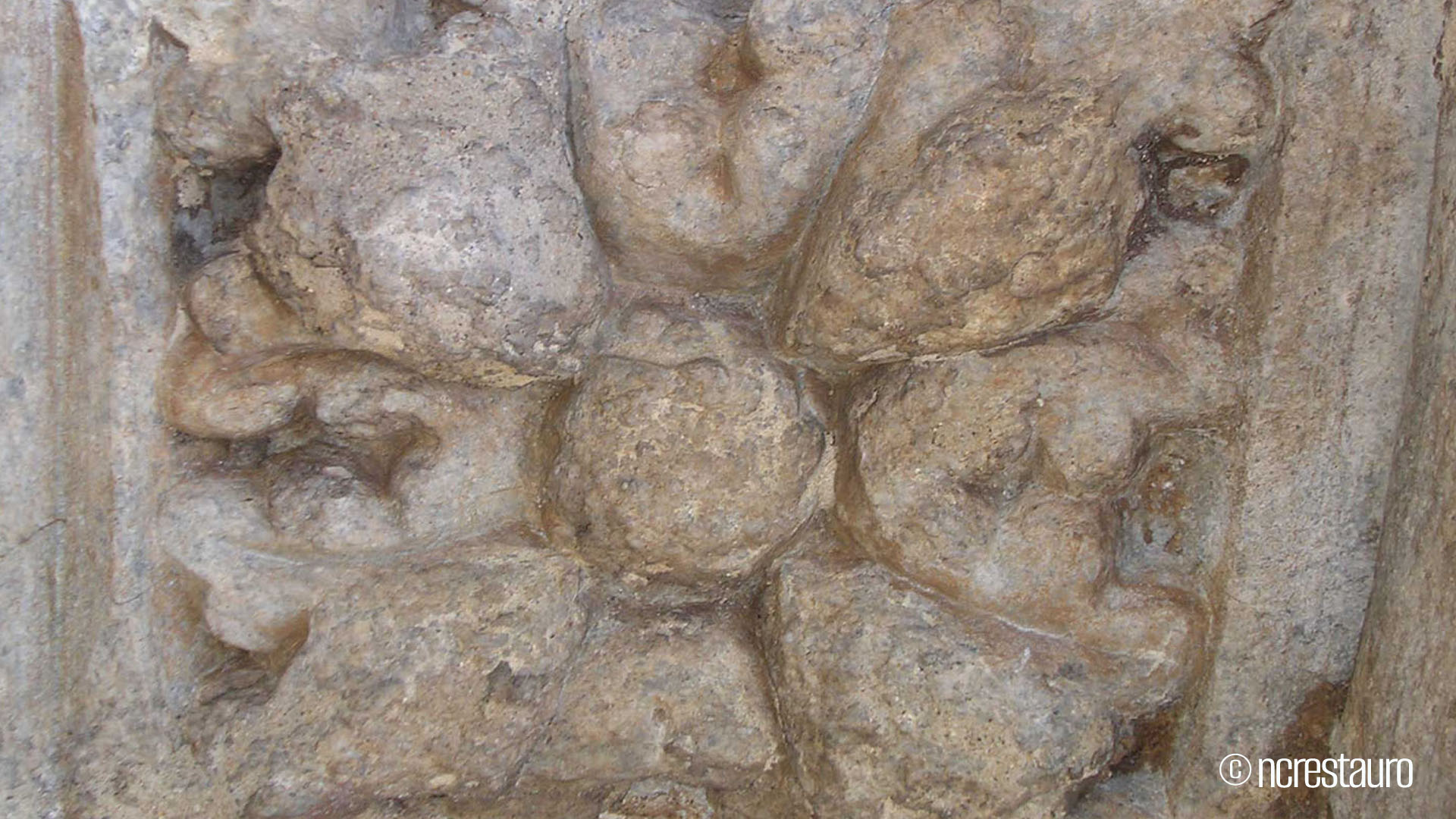

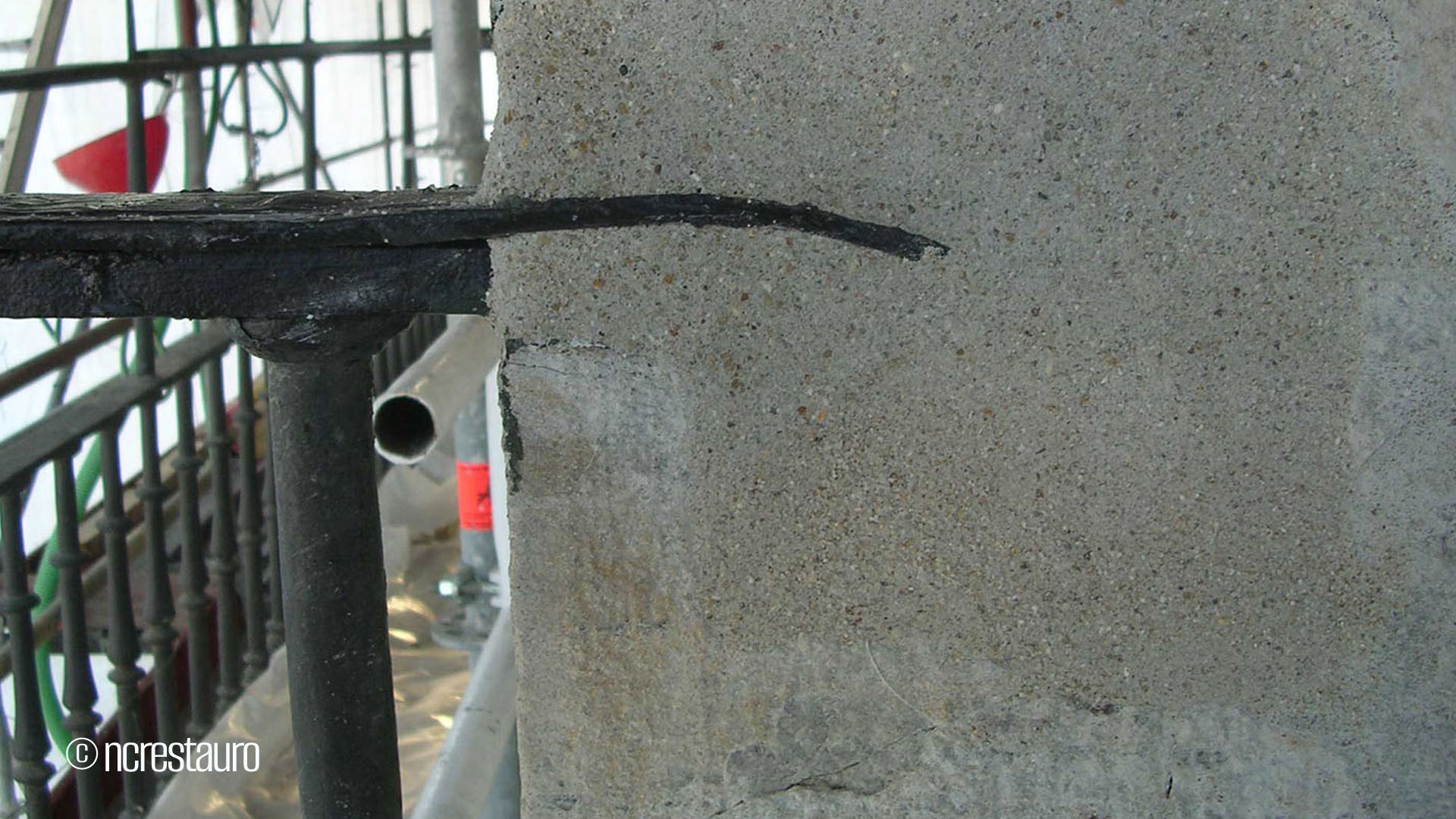

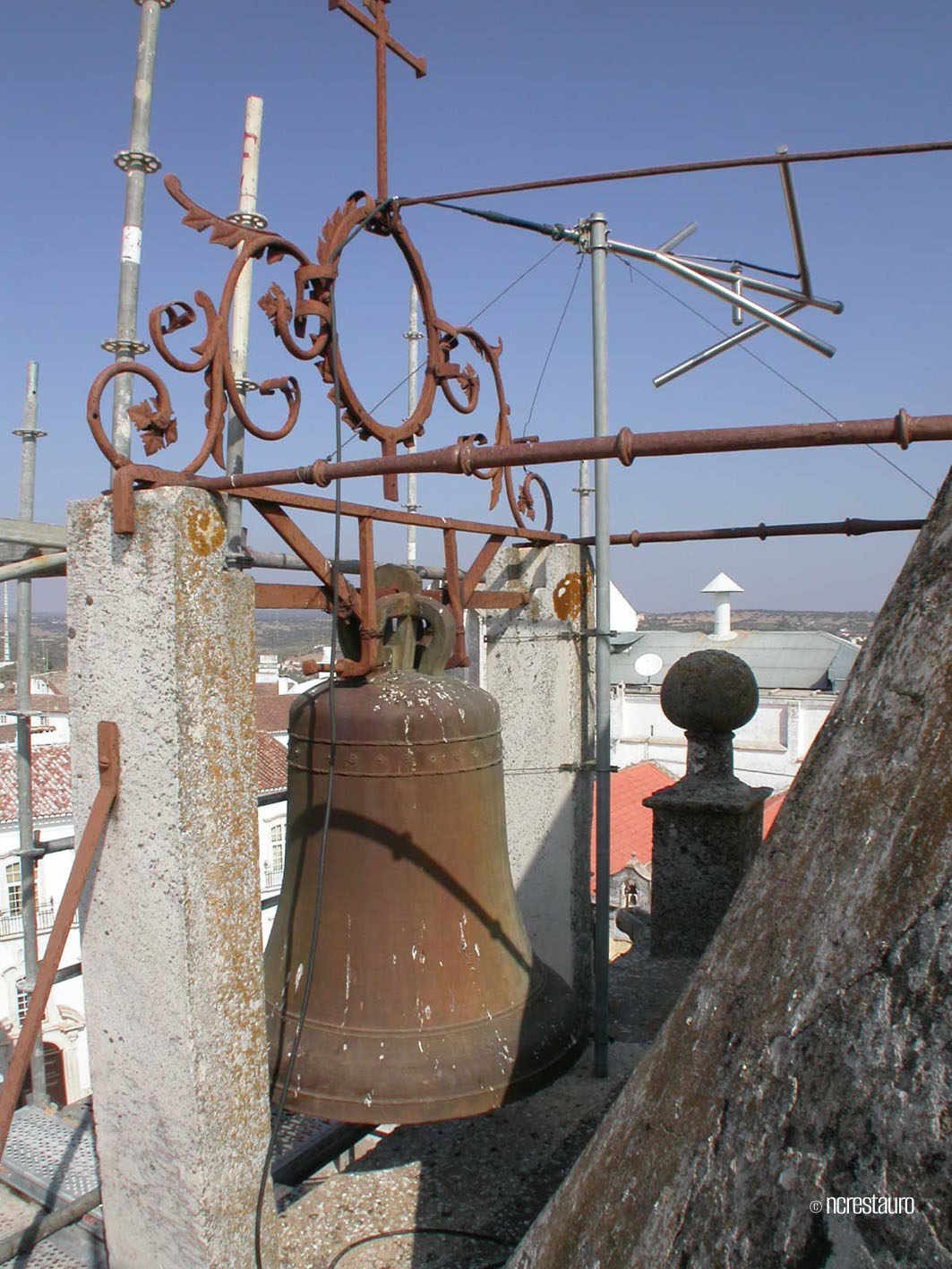

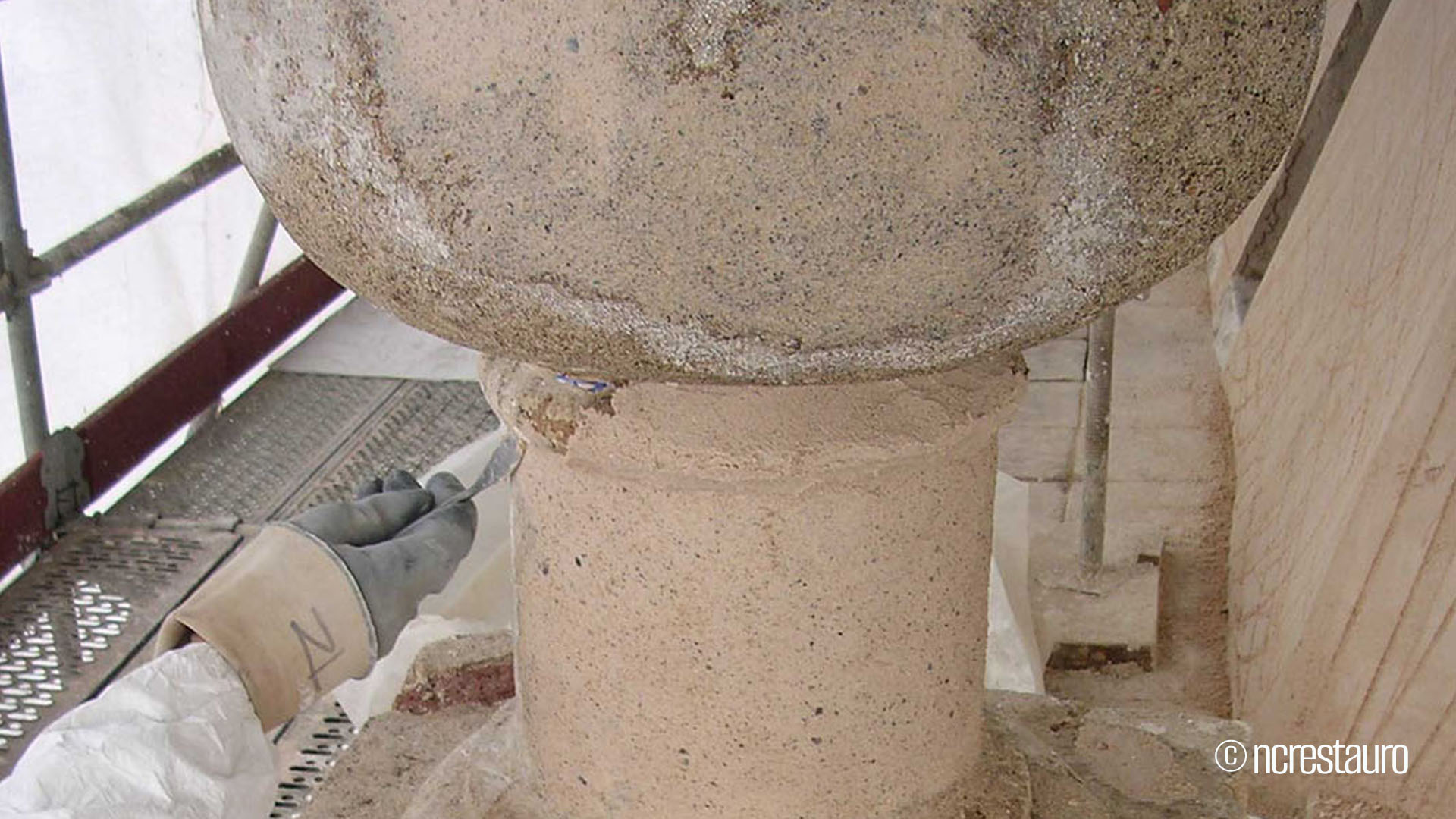

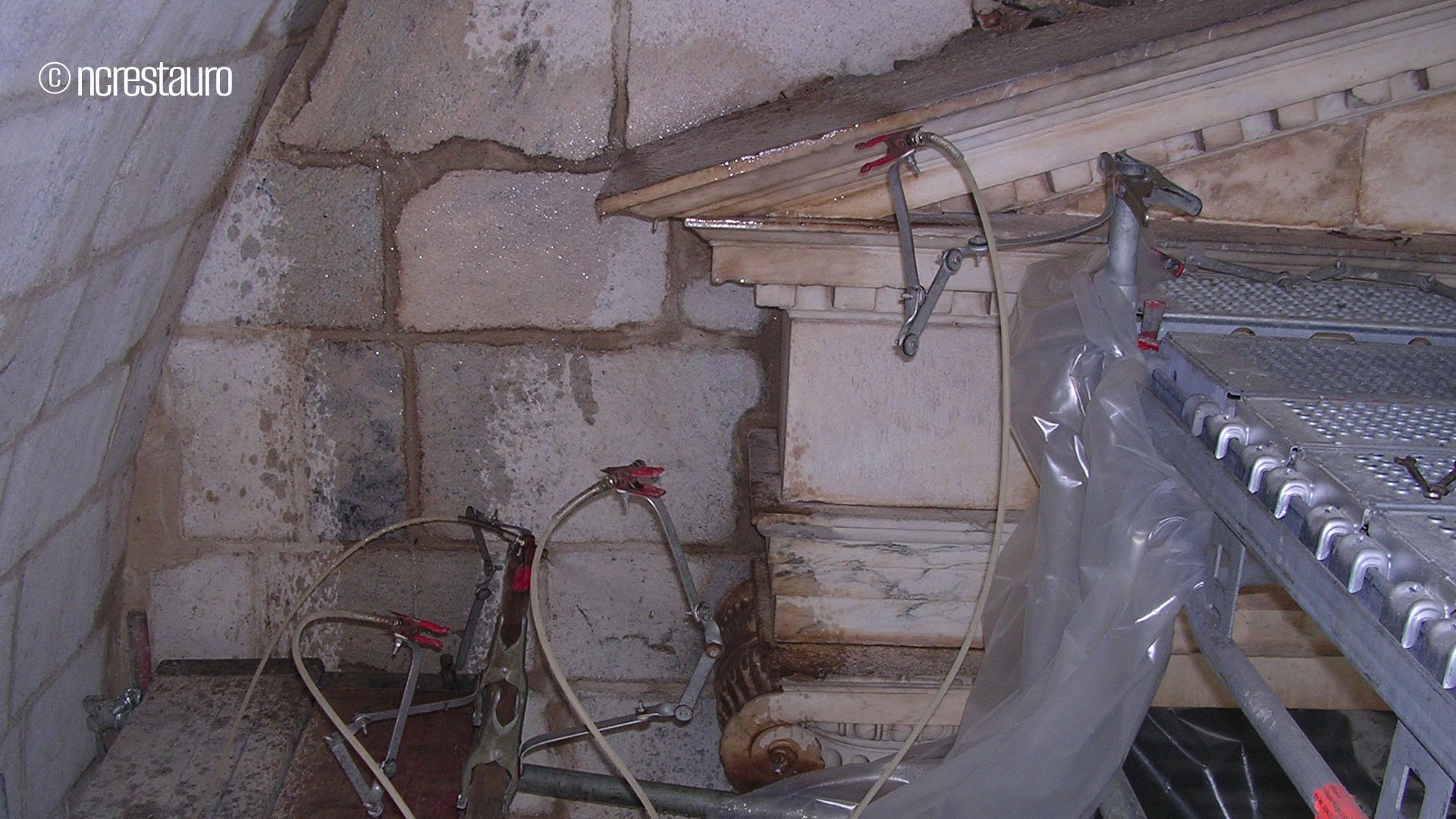

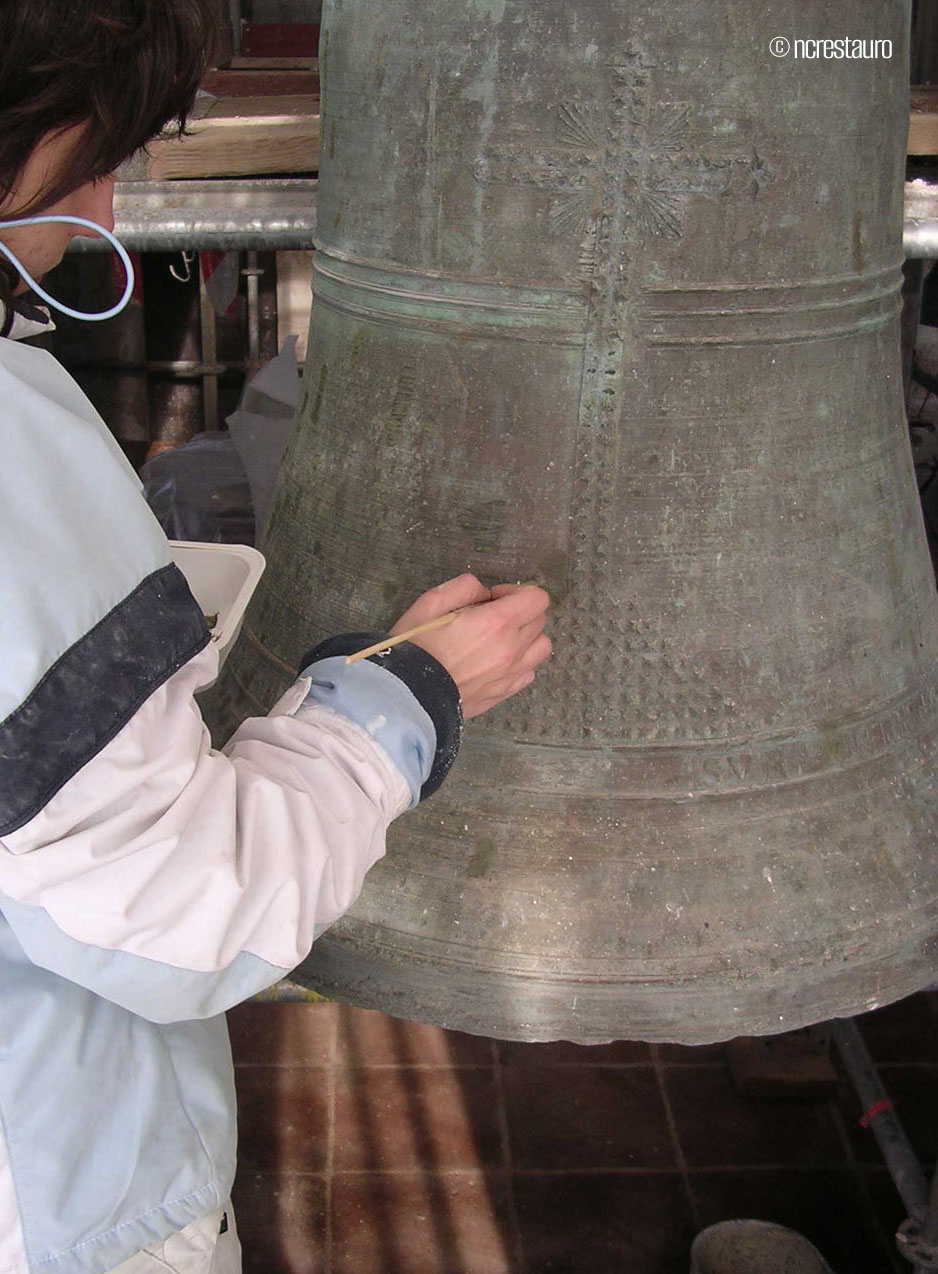

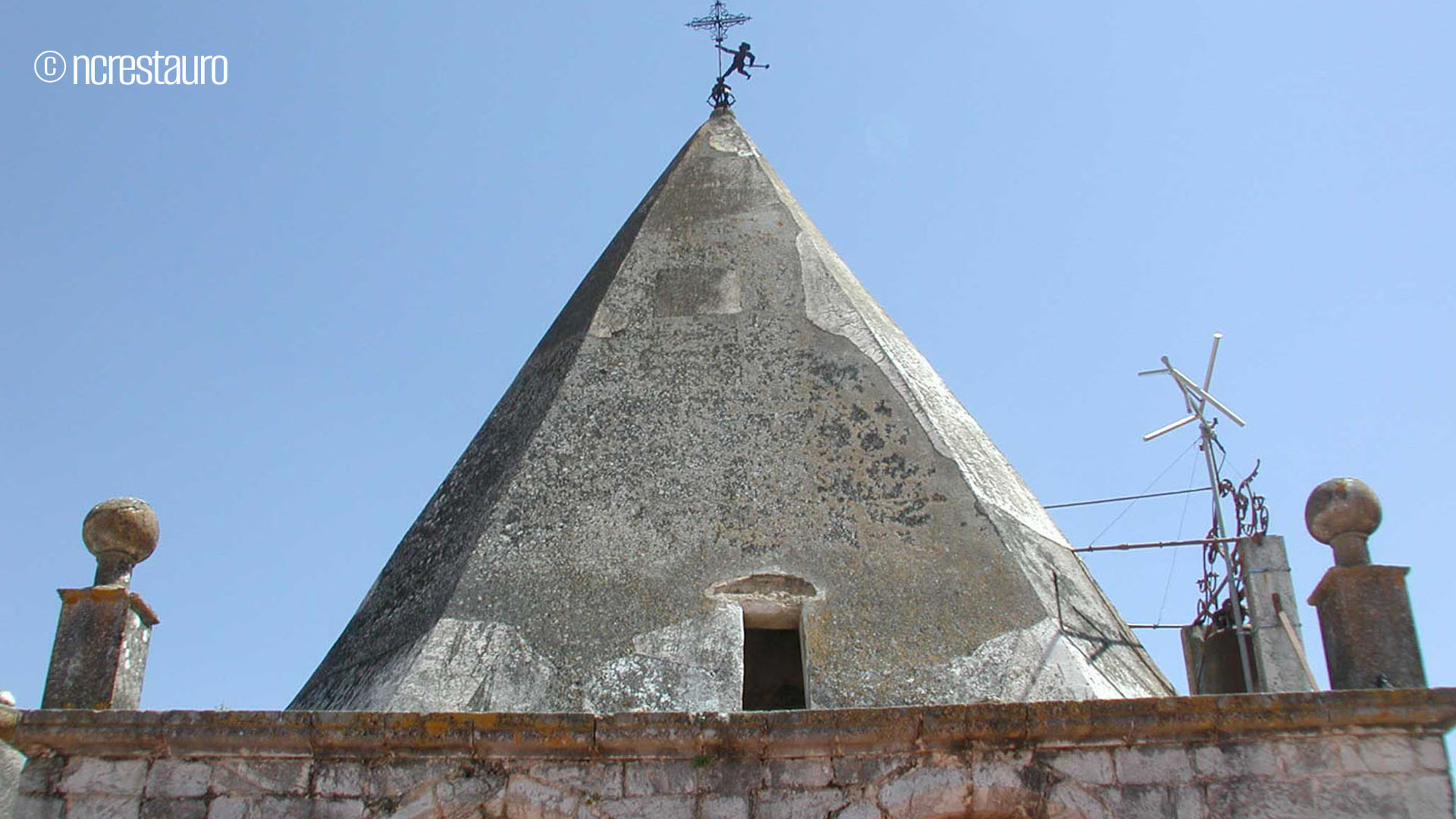

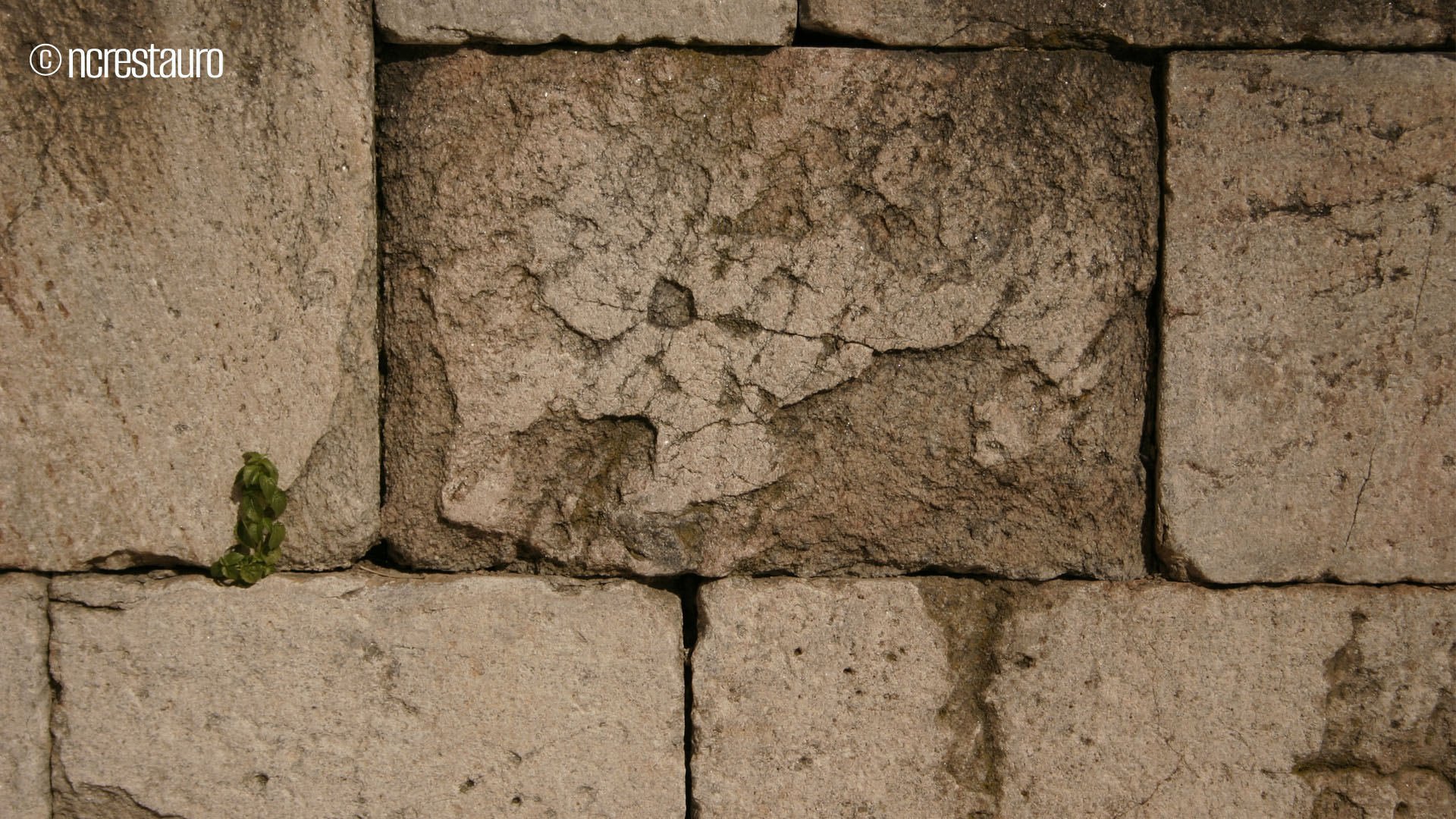

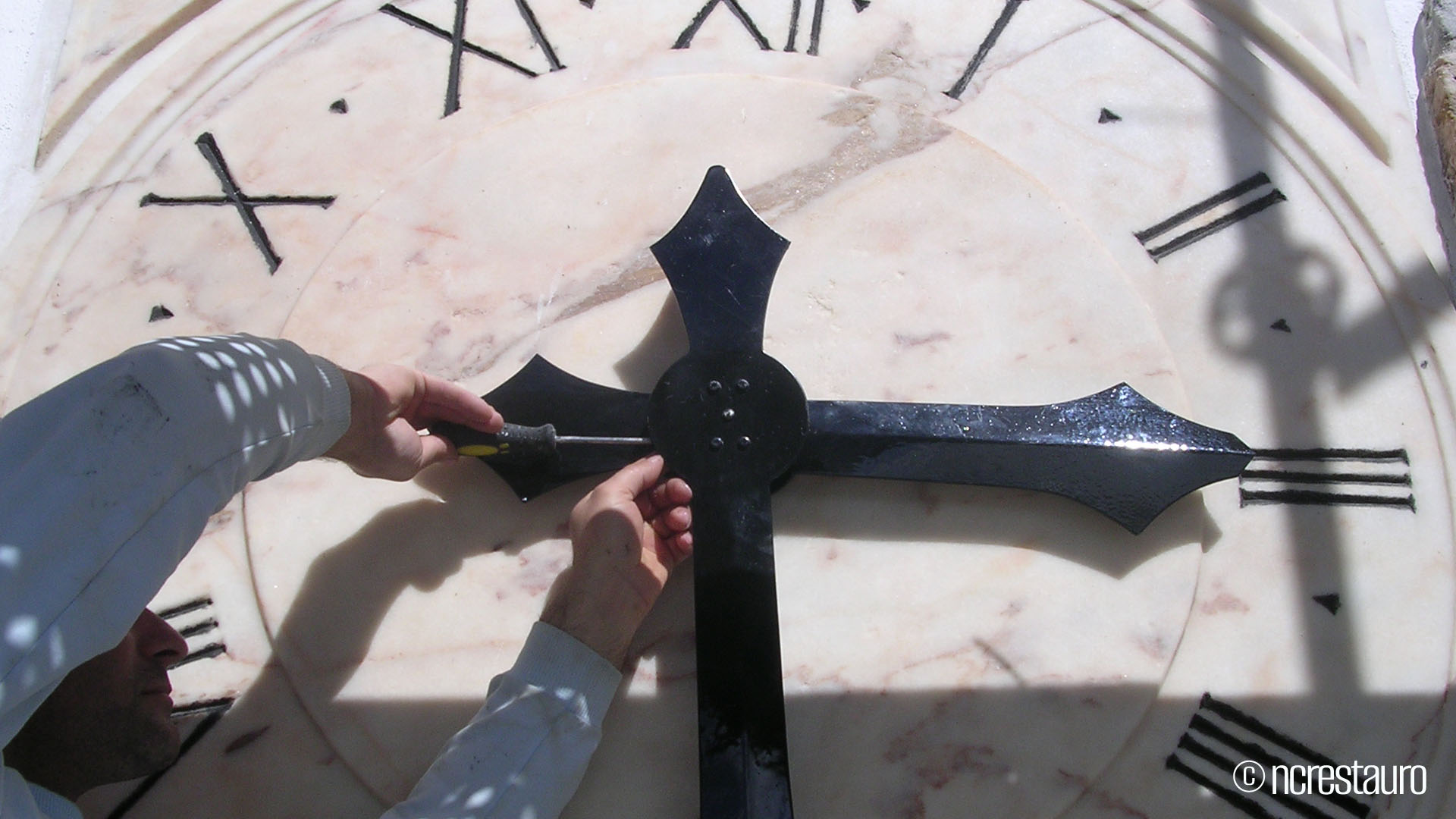

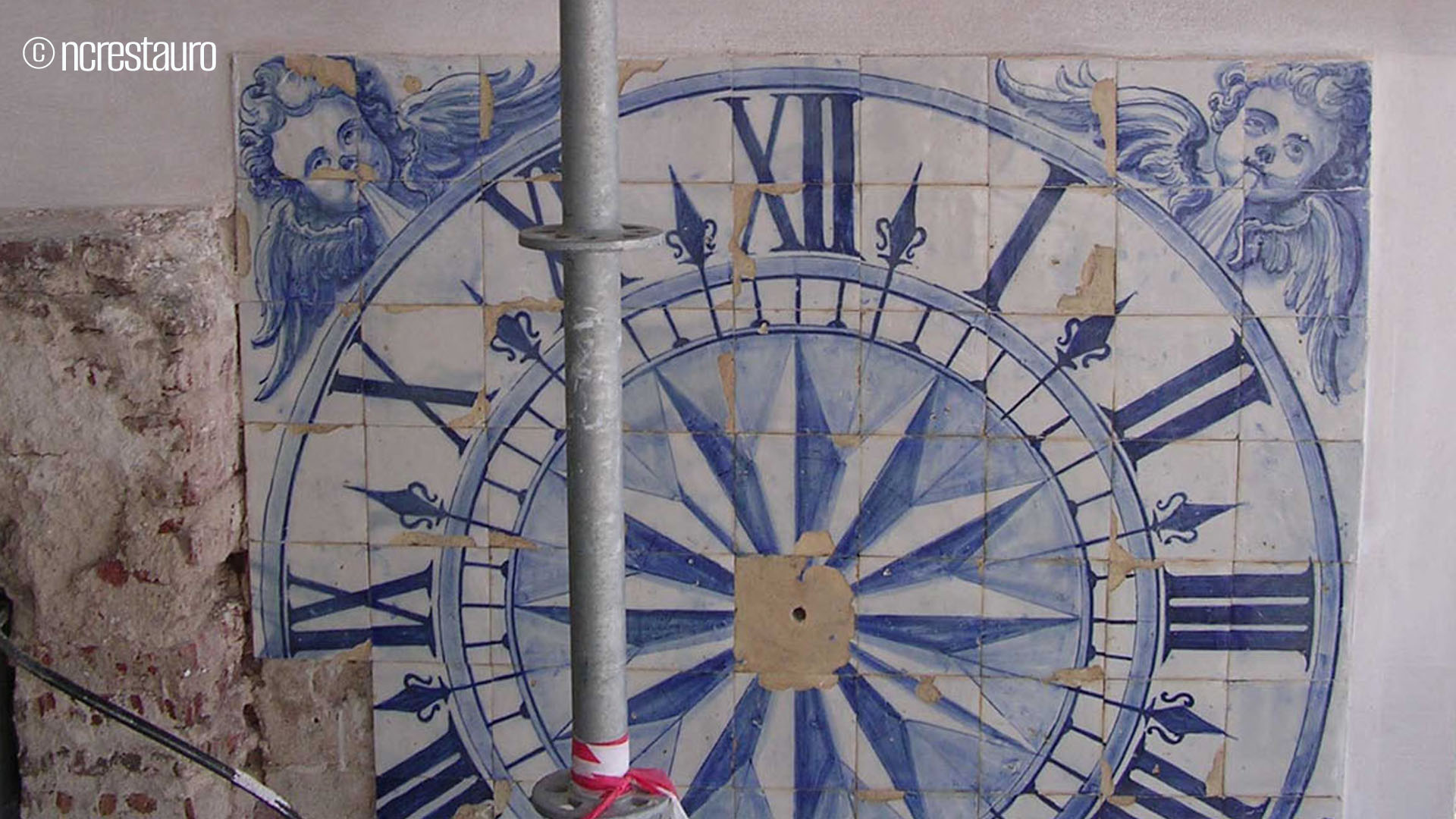

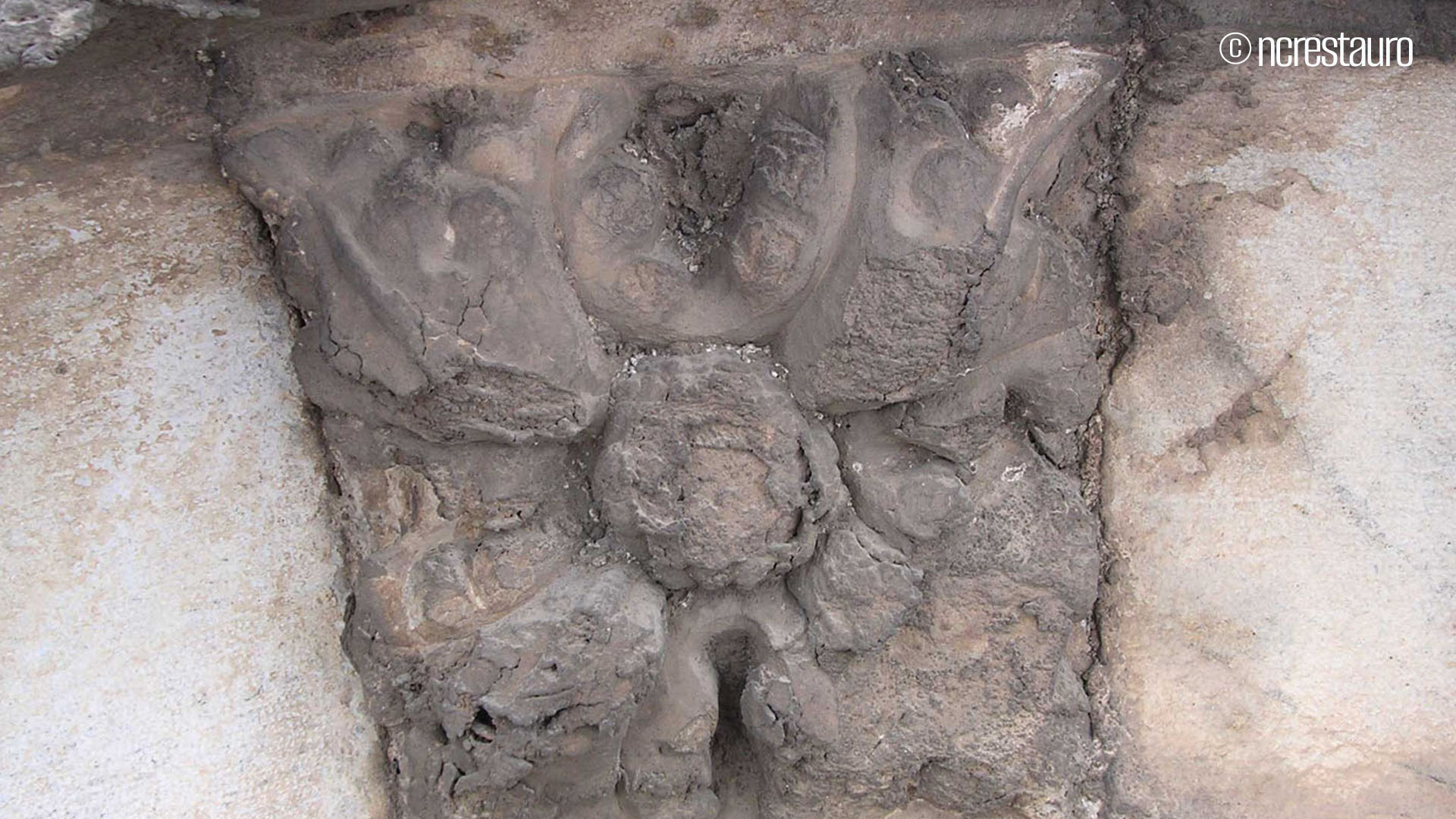

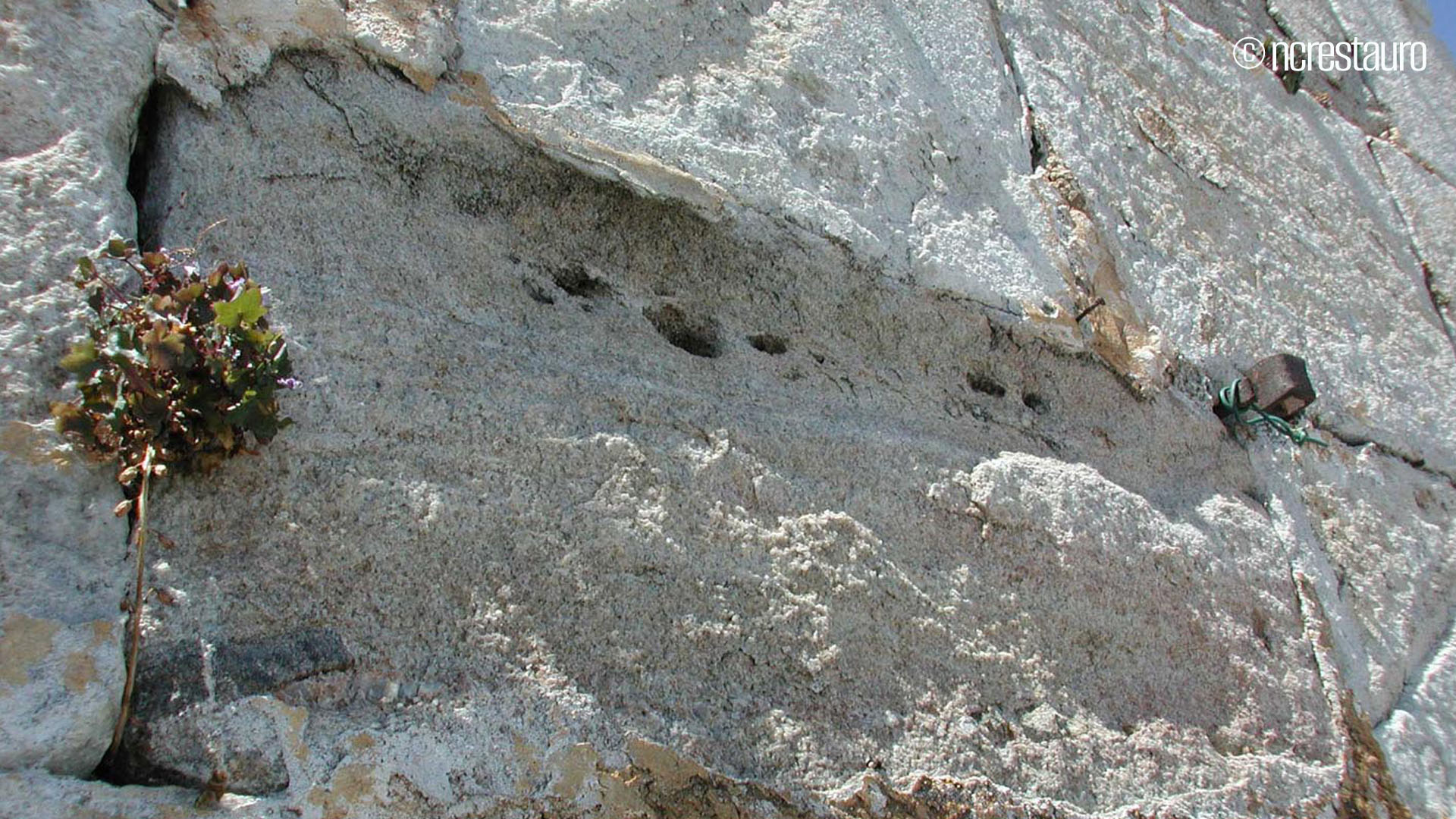

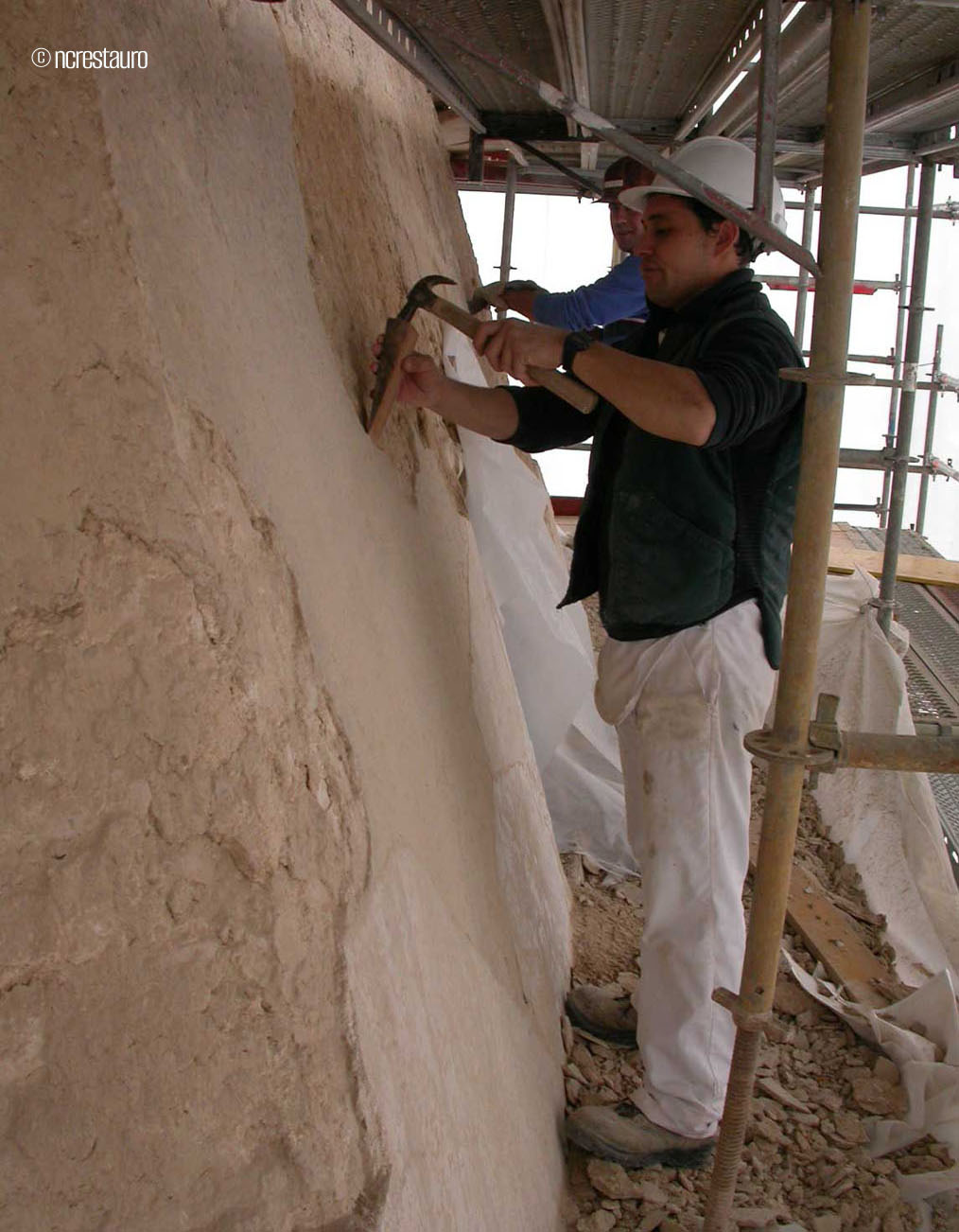

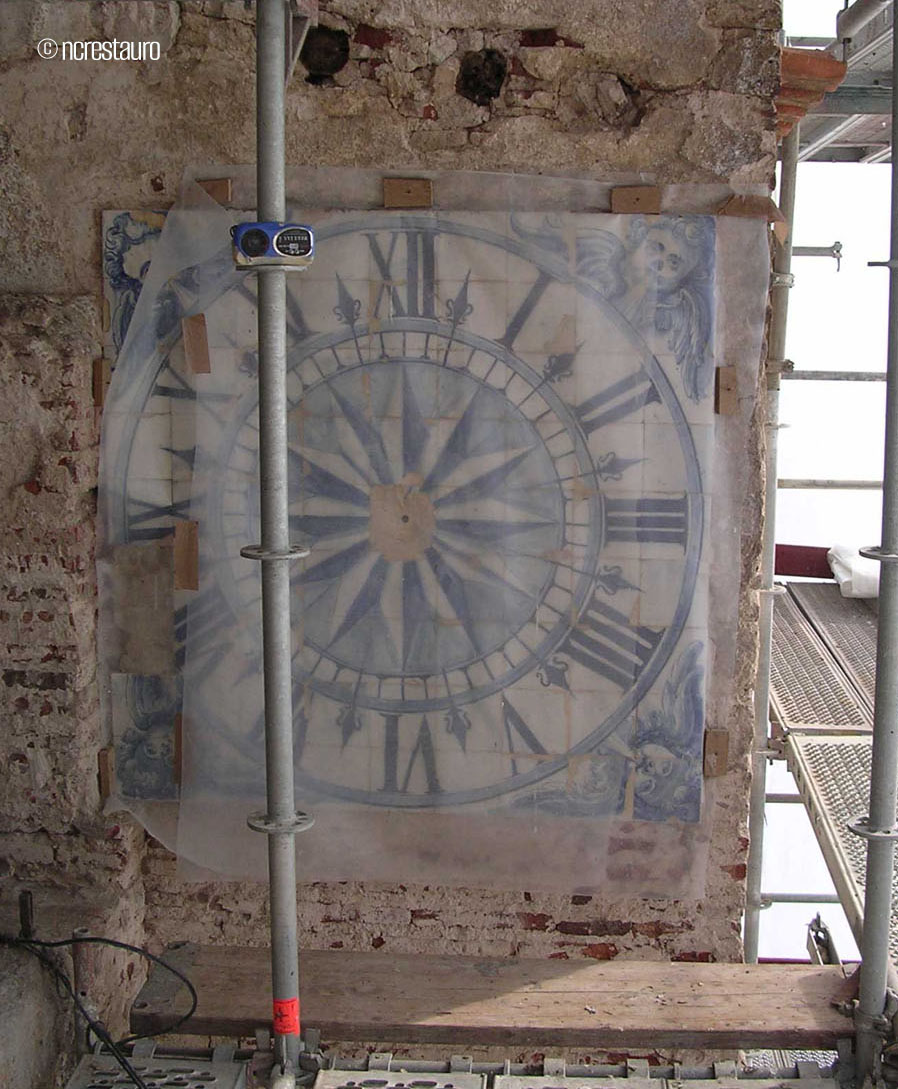

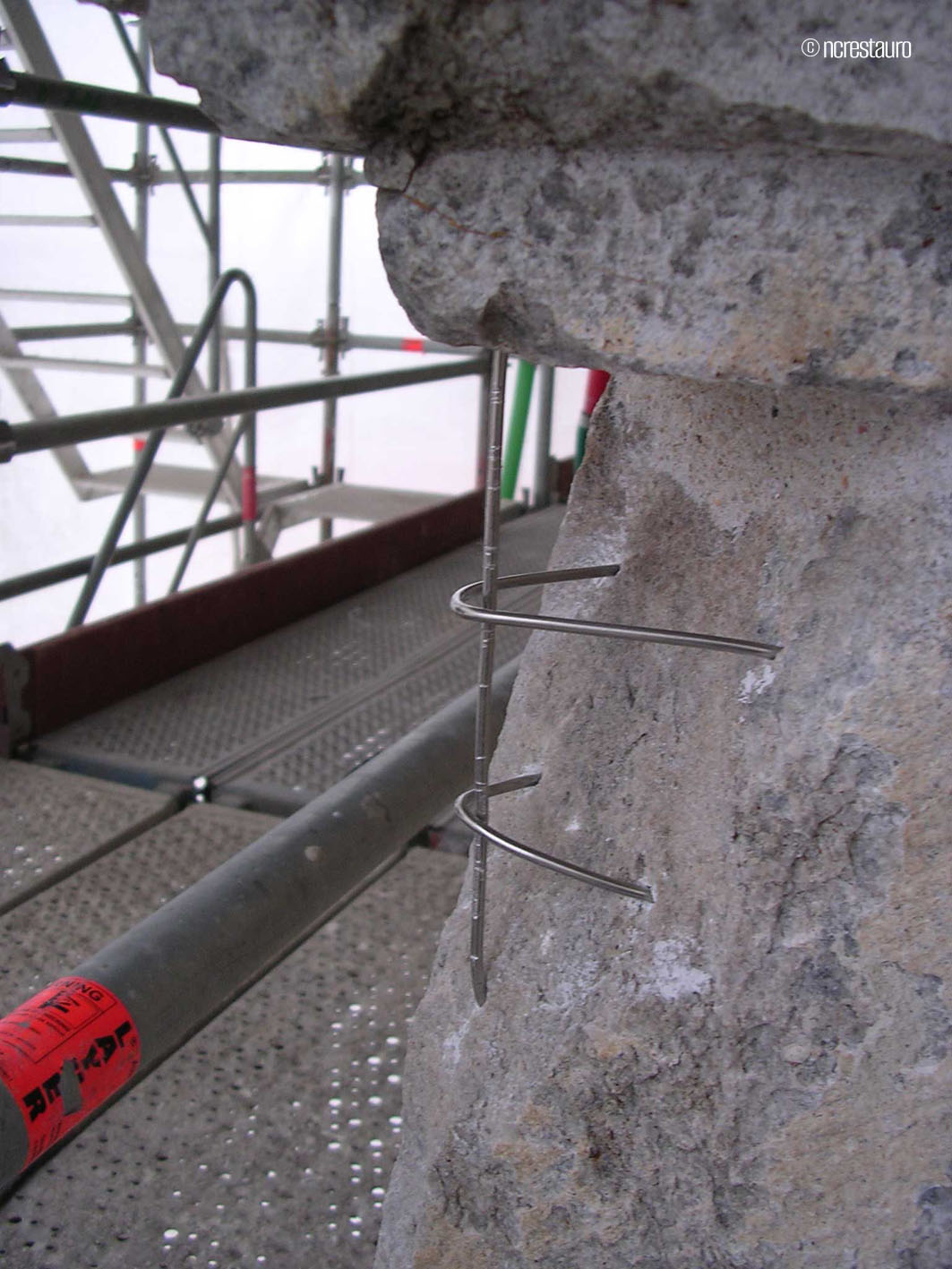

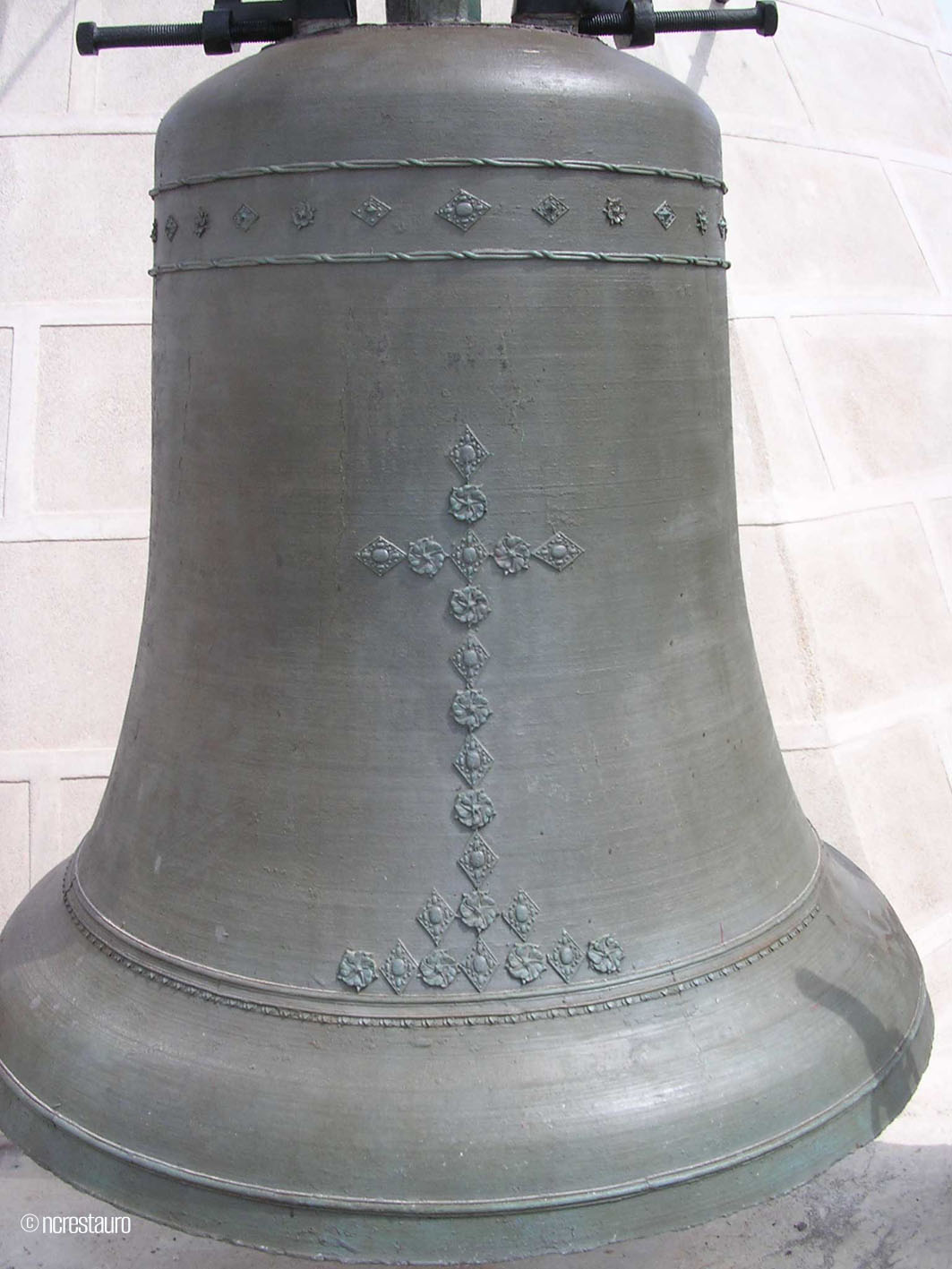

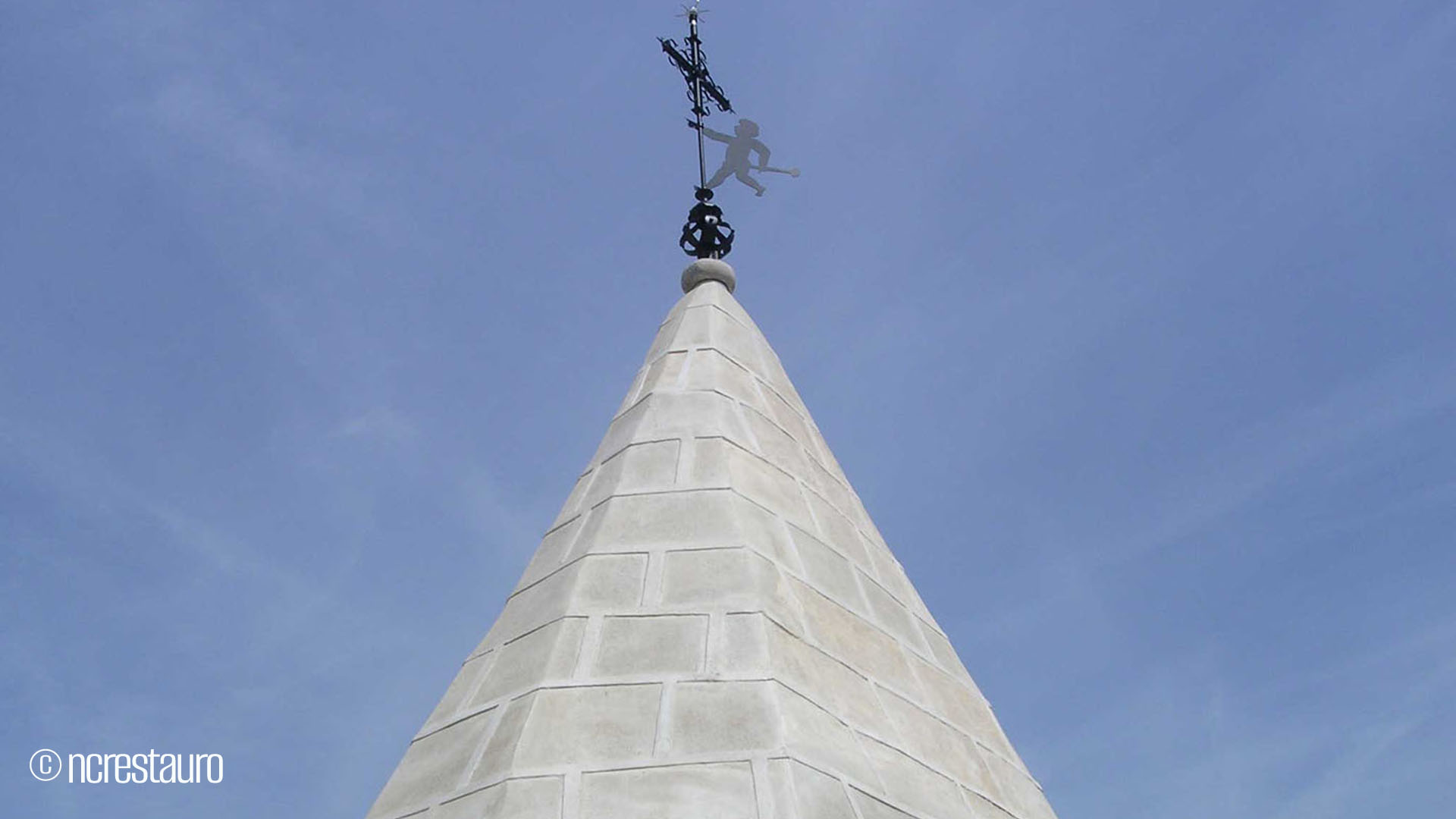

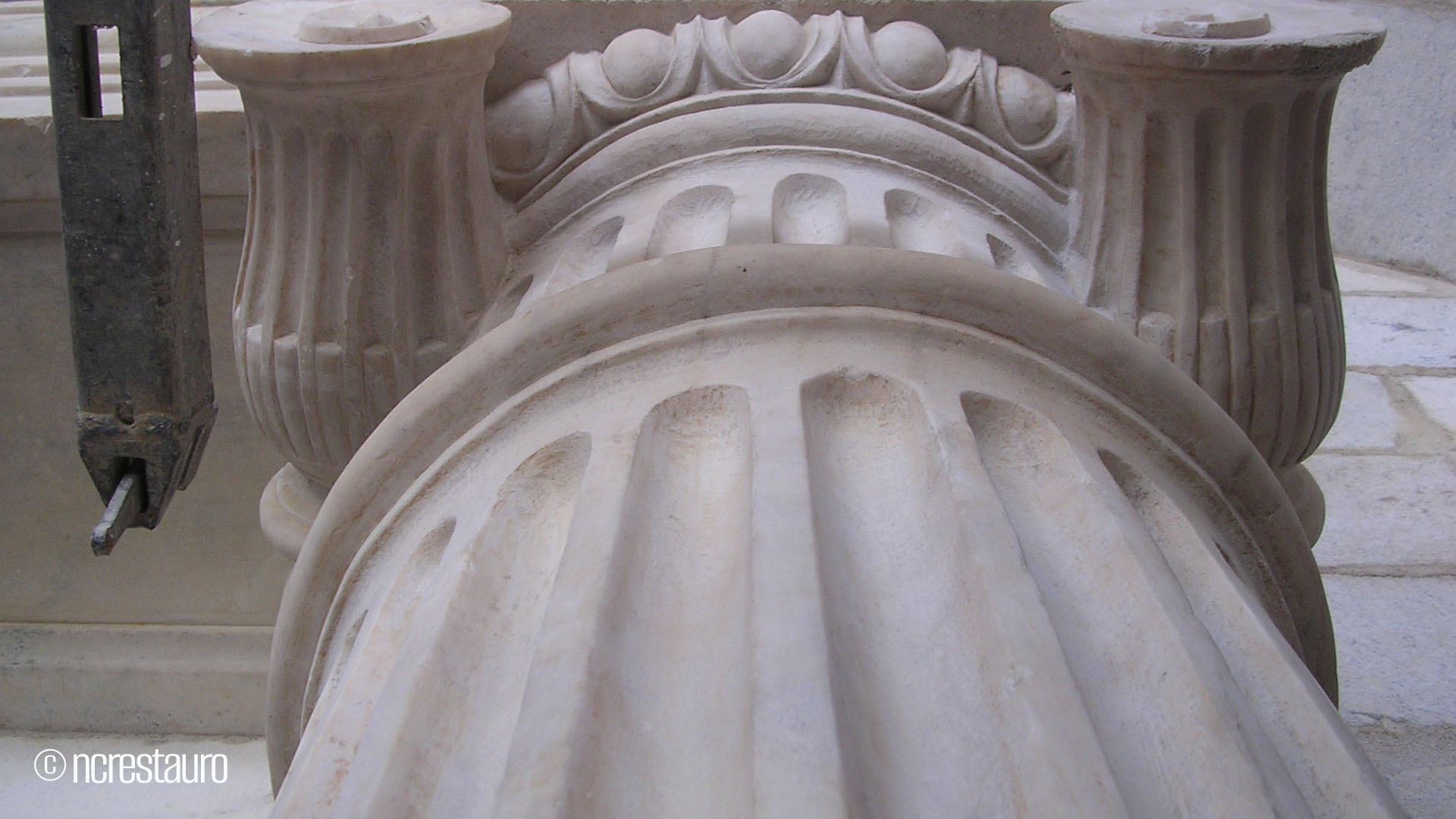

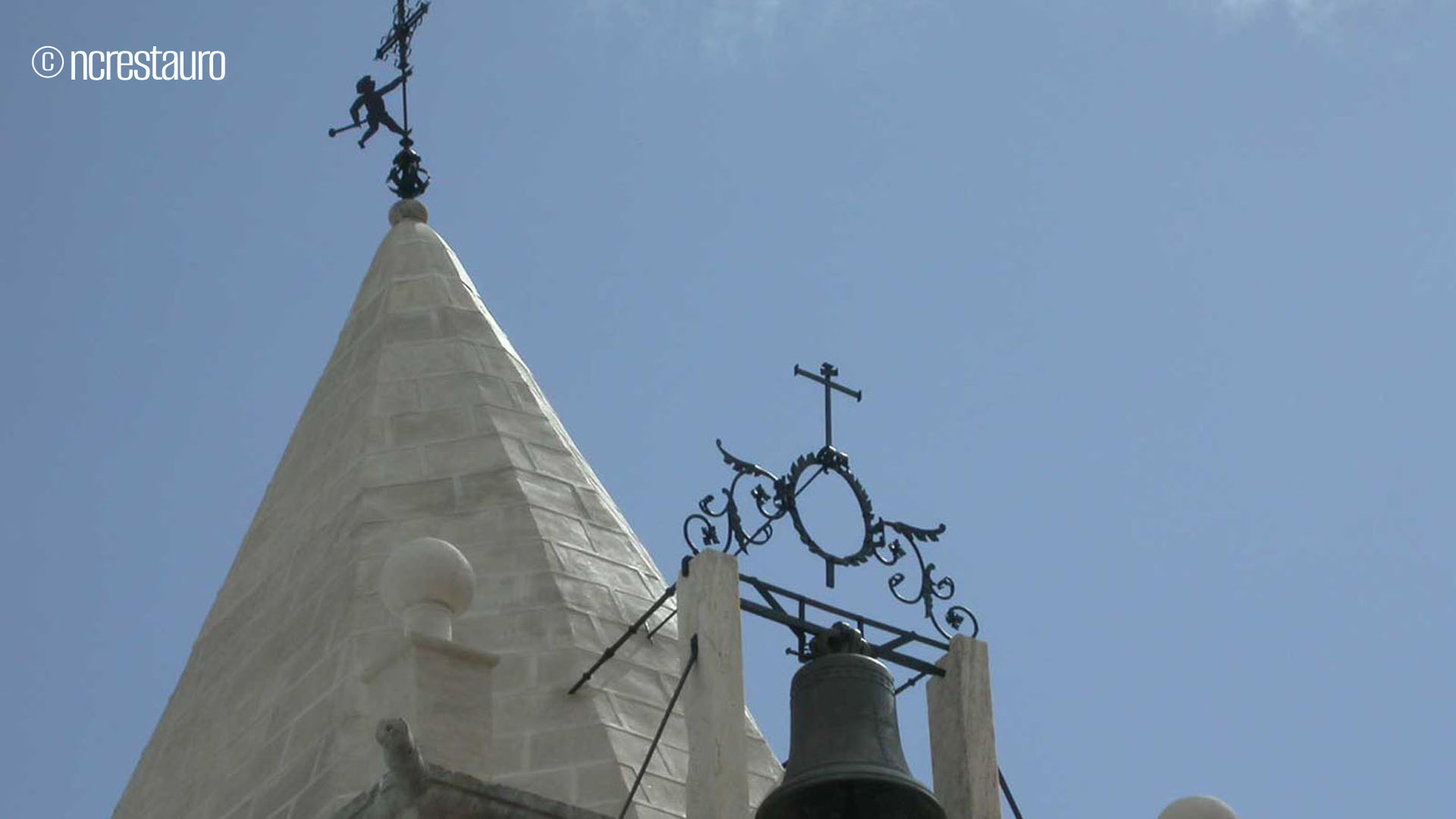

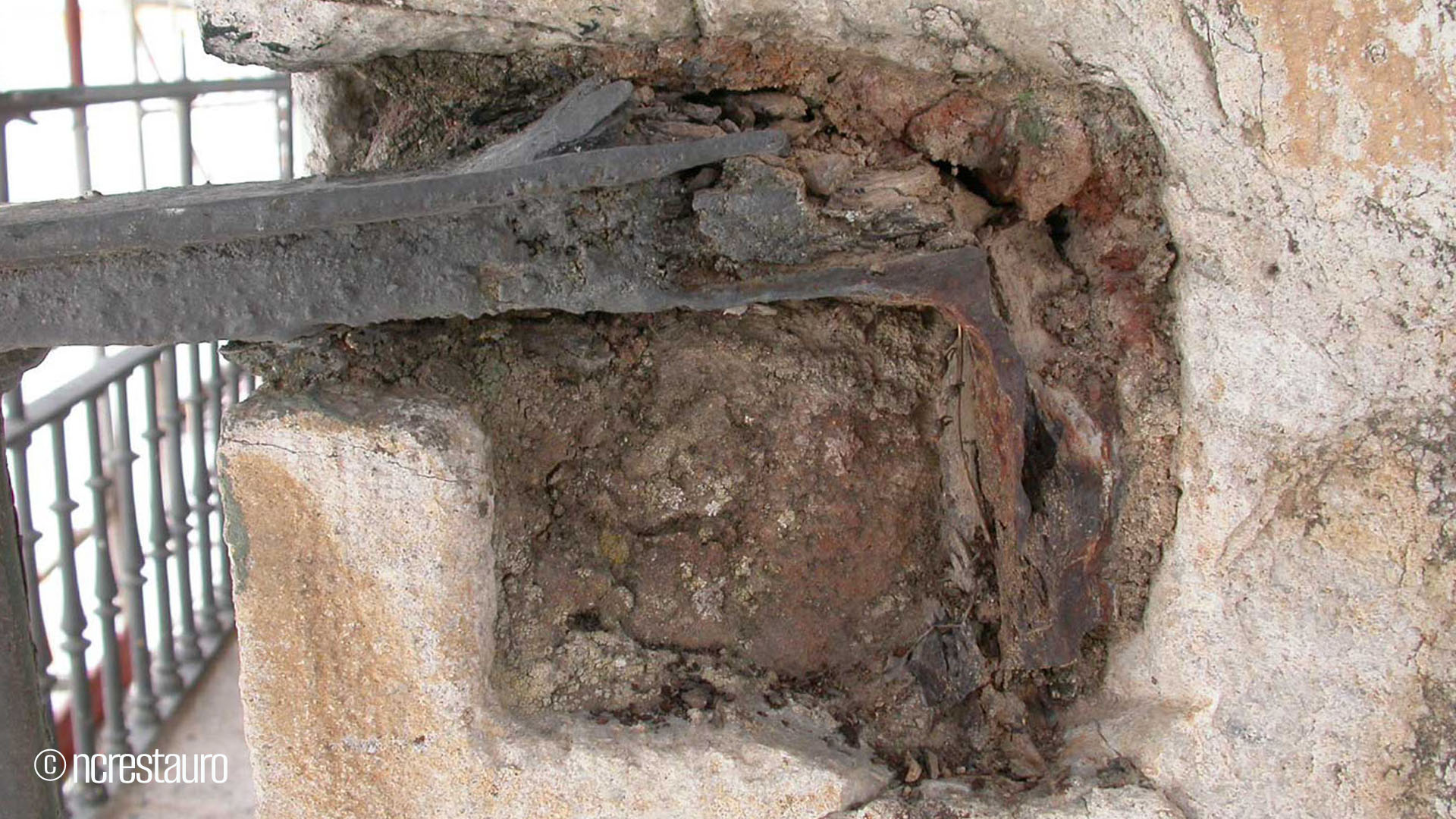

Biocidal treatment, cleaning, consolidation, joints repair, localised block replacement, correction of misalignments; treatment of cracks and fractures, treatment of metal elements, conservation of the bell tower (including: waterproofing and correction of slopes, conservation of the bells, treatment of the spire, conservation of the sgraffito plaster on the west façade, conservation and replacement with a replica of the cross and weathervane on the spire), treatment of the tile panel and installation of an electrostatic system for bird deterrence.
Areas

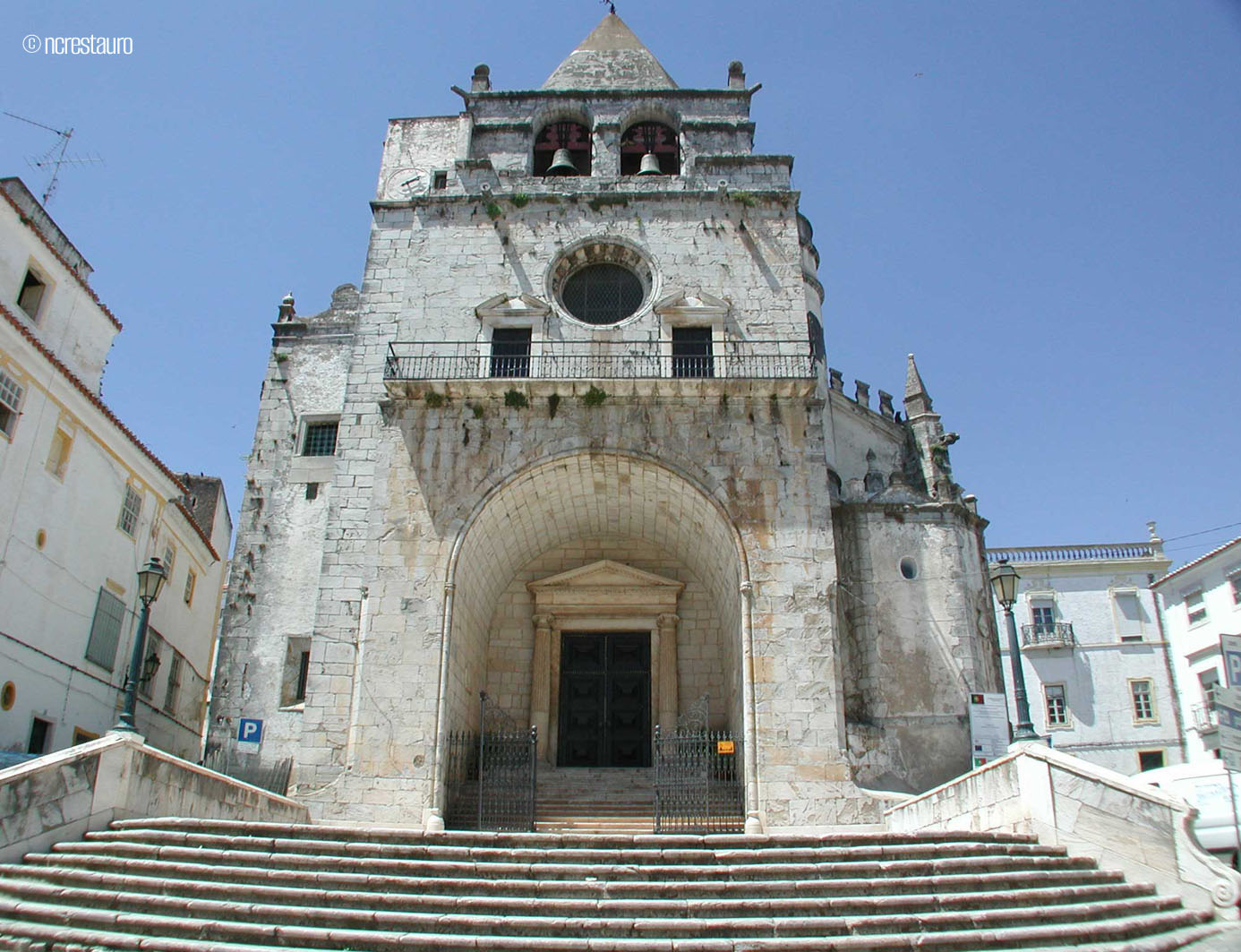

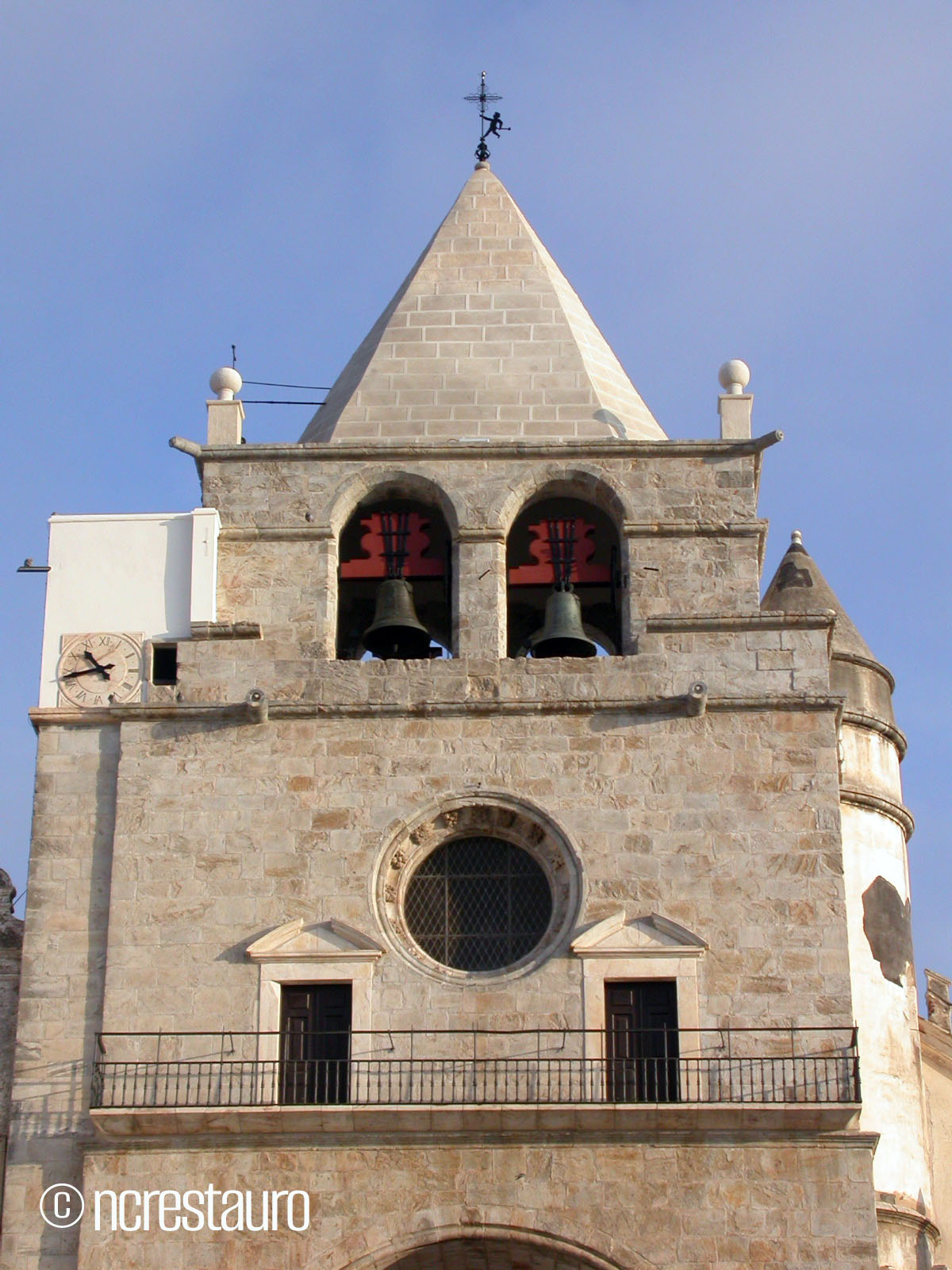

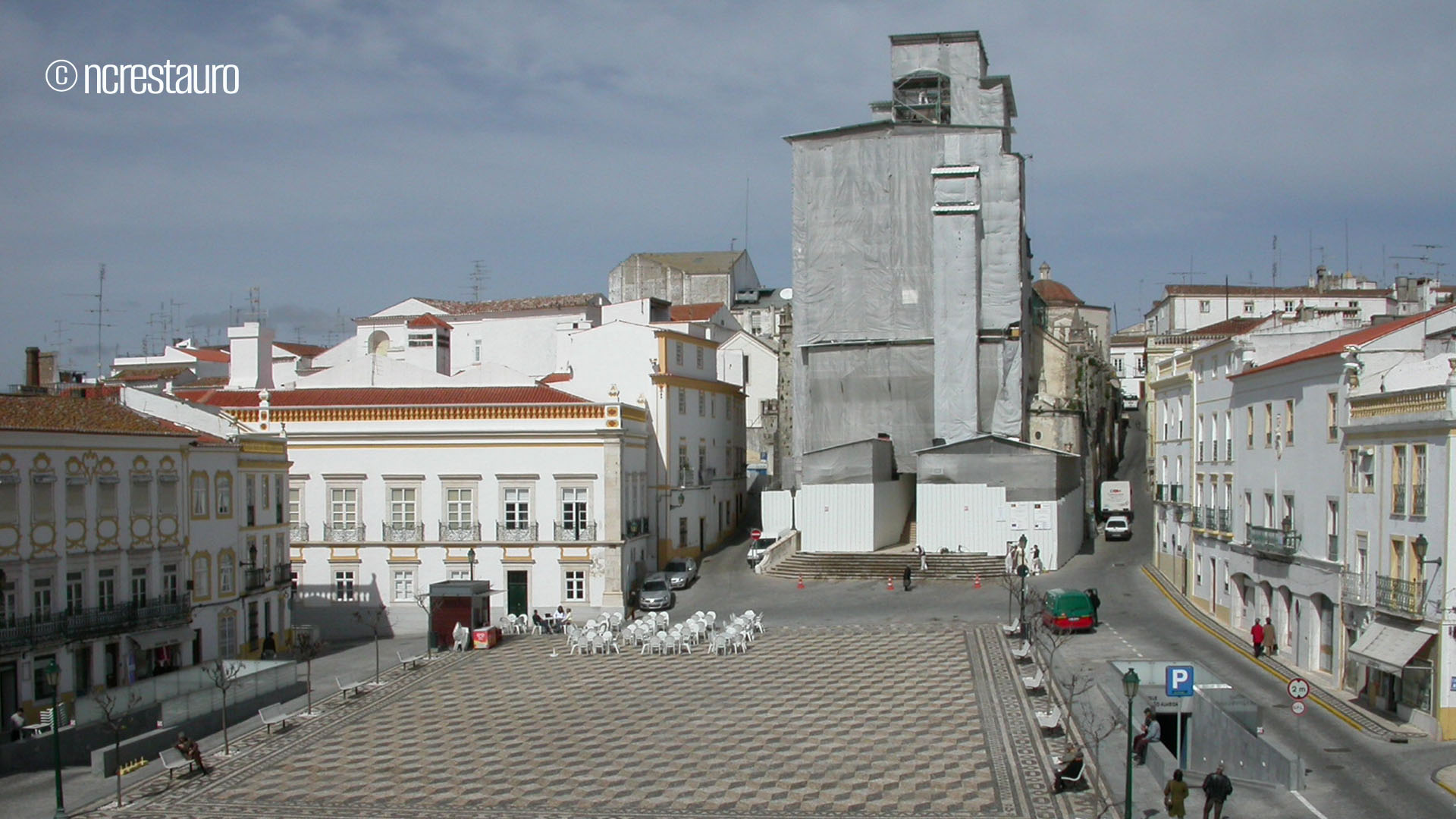

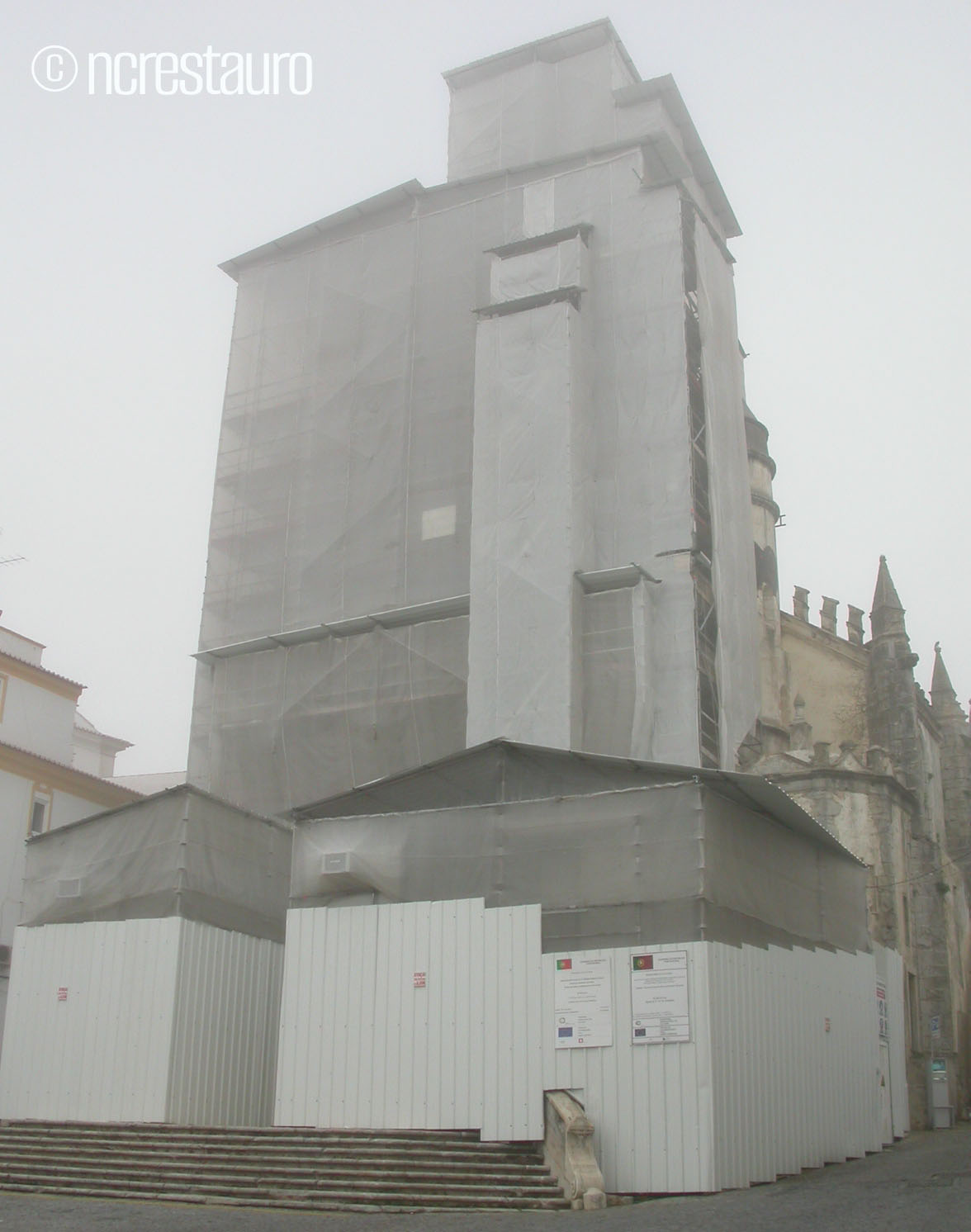

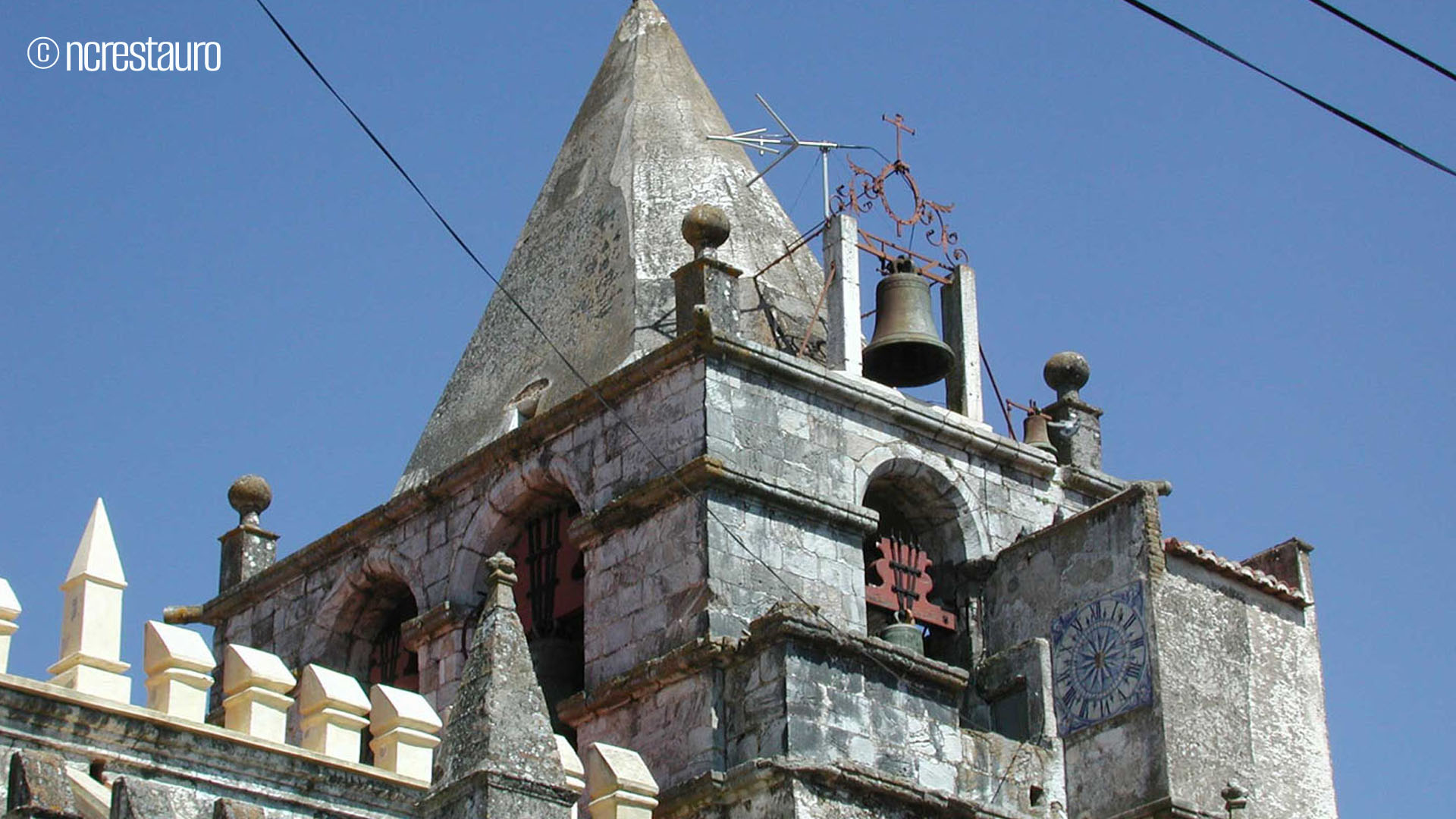

Main façade and bell tower
Materials
stone (marble), metals (bronze – bells; wrought iron; cast iron), traditional plasters, ceramics (glazed tiles, terracotta tiles), others (electric bird proofing)
Analyses

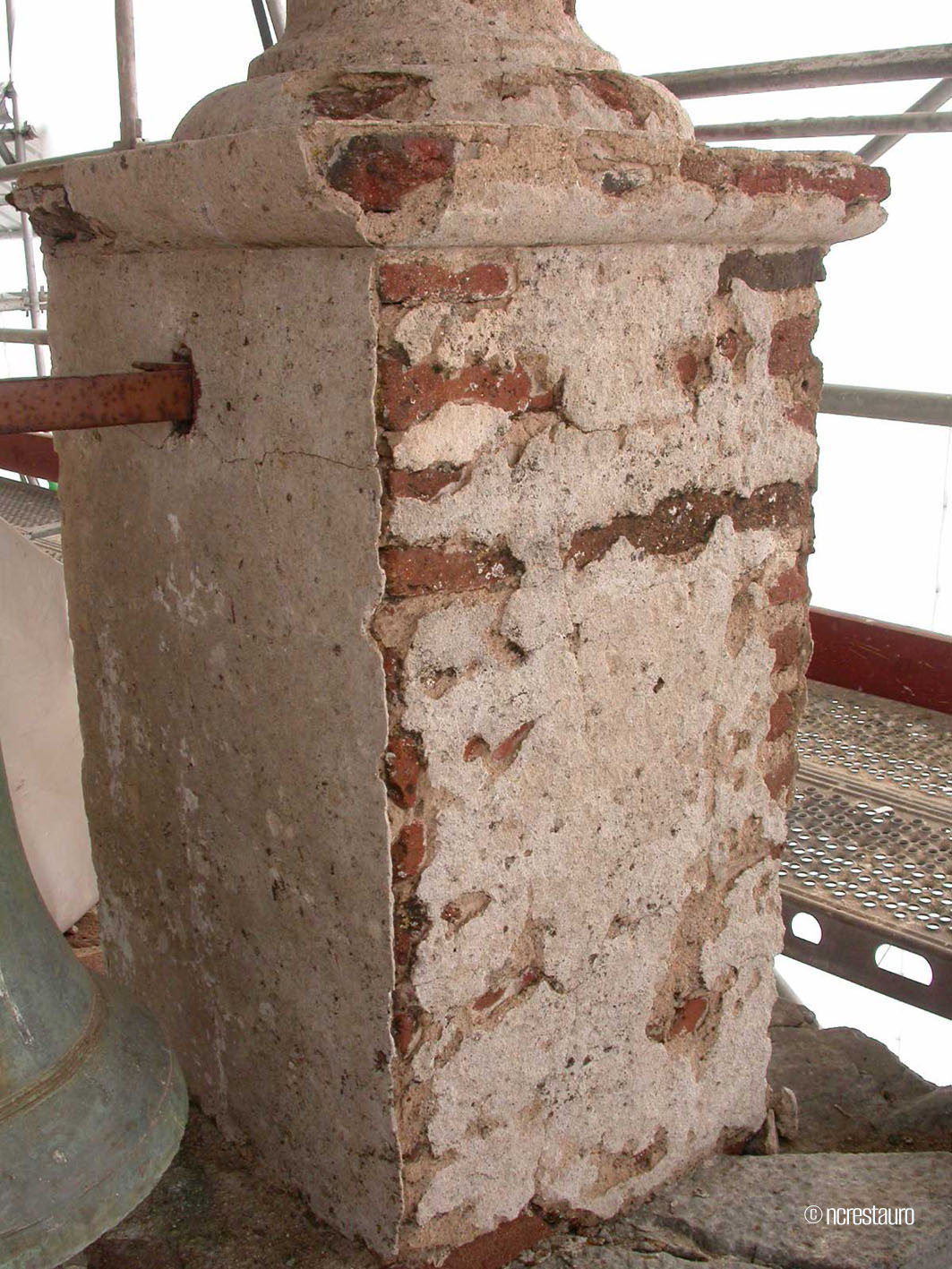

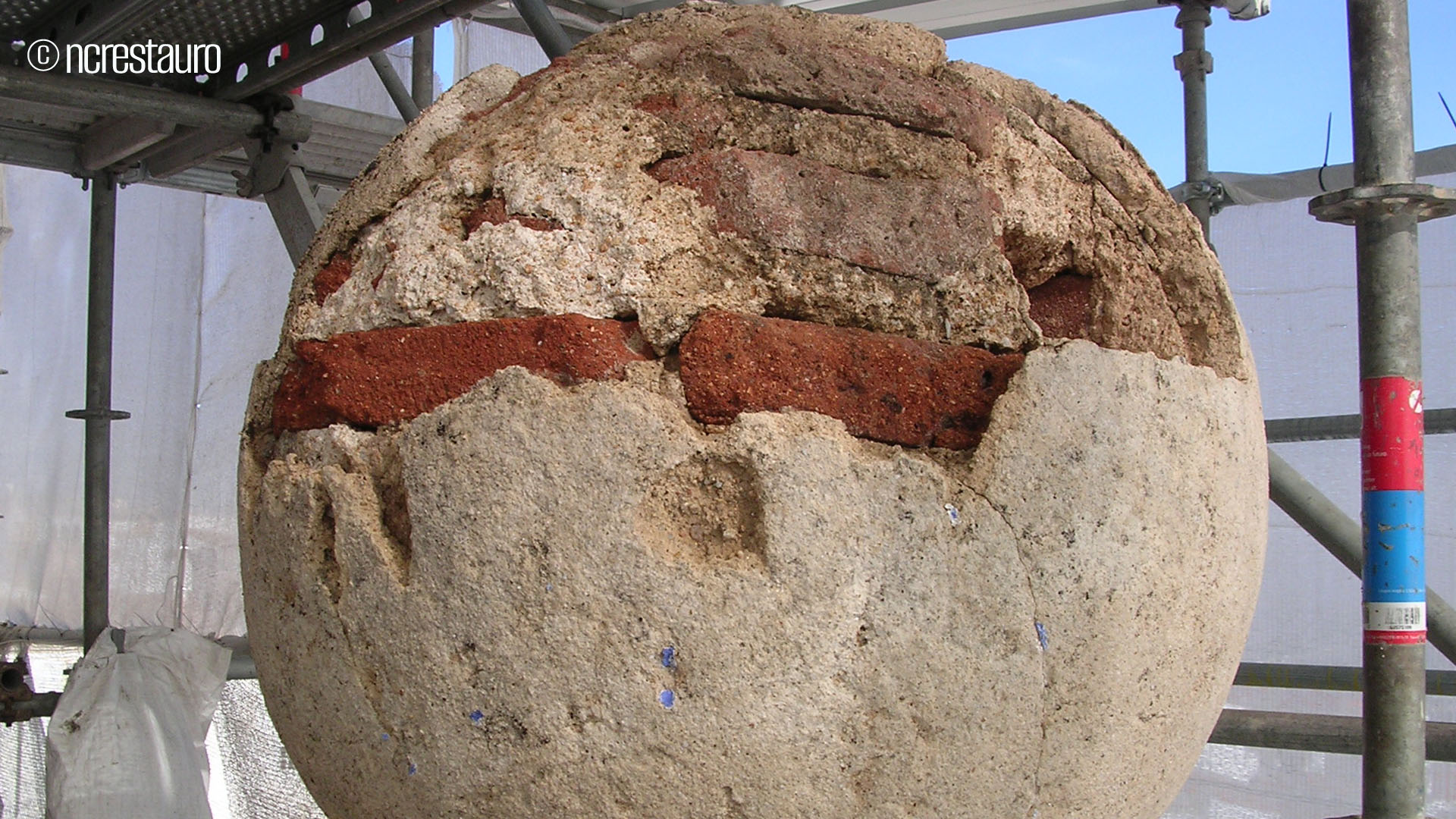

- Characterisation of the original render materials, with in loco experimental tests, to define the restoration mortars’ properties;
- The former cathedral of Elvas was part of the Cathedral Project (Characterization and Conservation of Traditional Historical Mortars of Religious Buildings in Alentejo), conducted by LNEC; UÉ; FC-UL and MC-DRE.
R&D

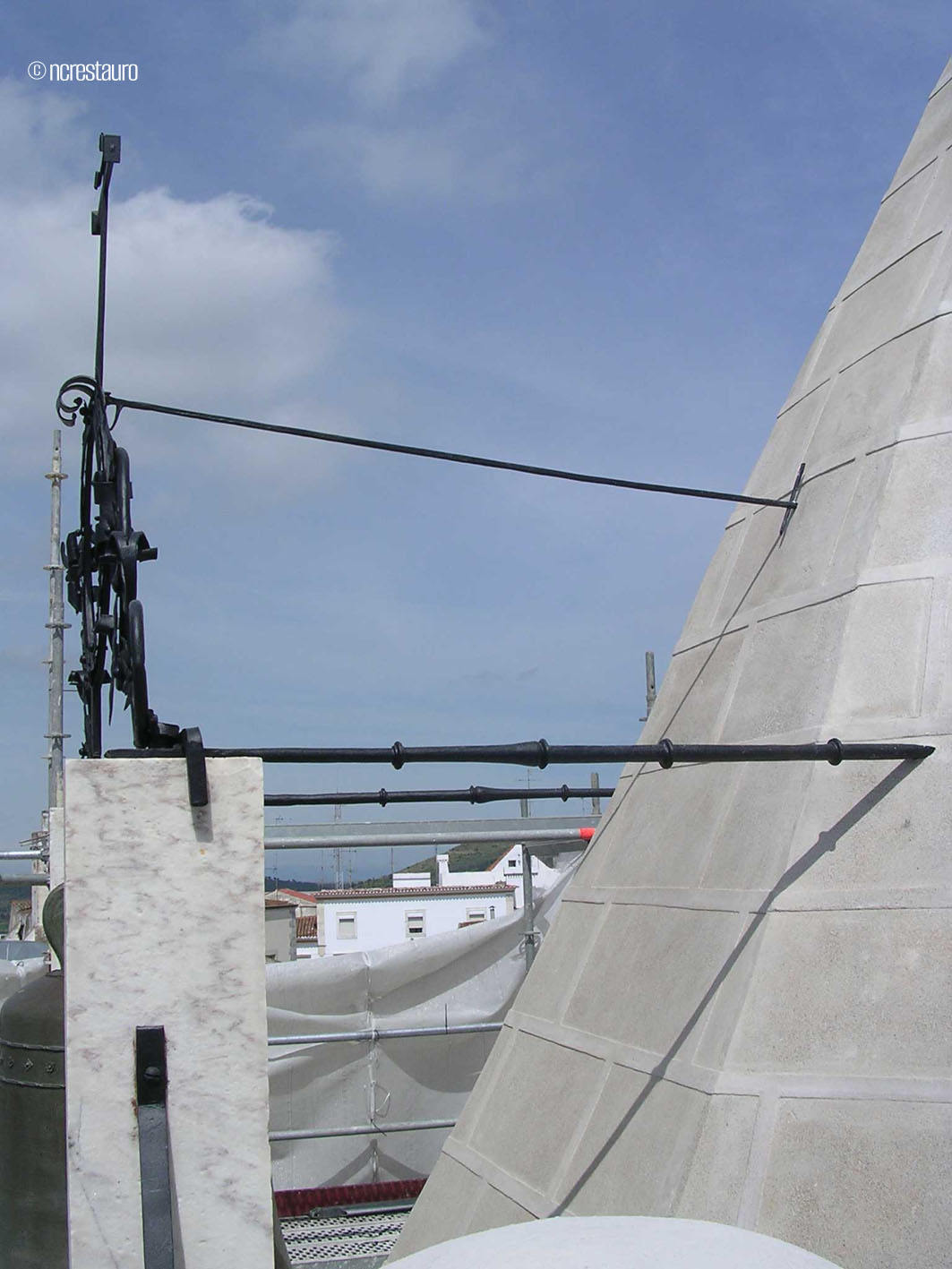

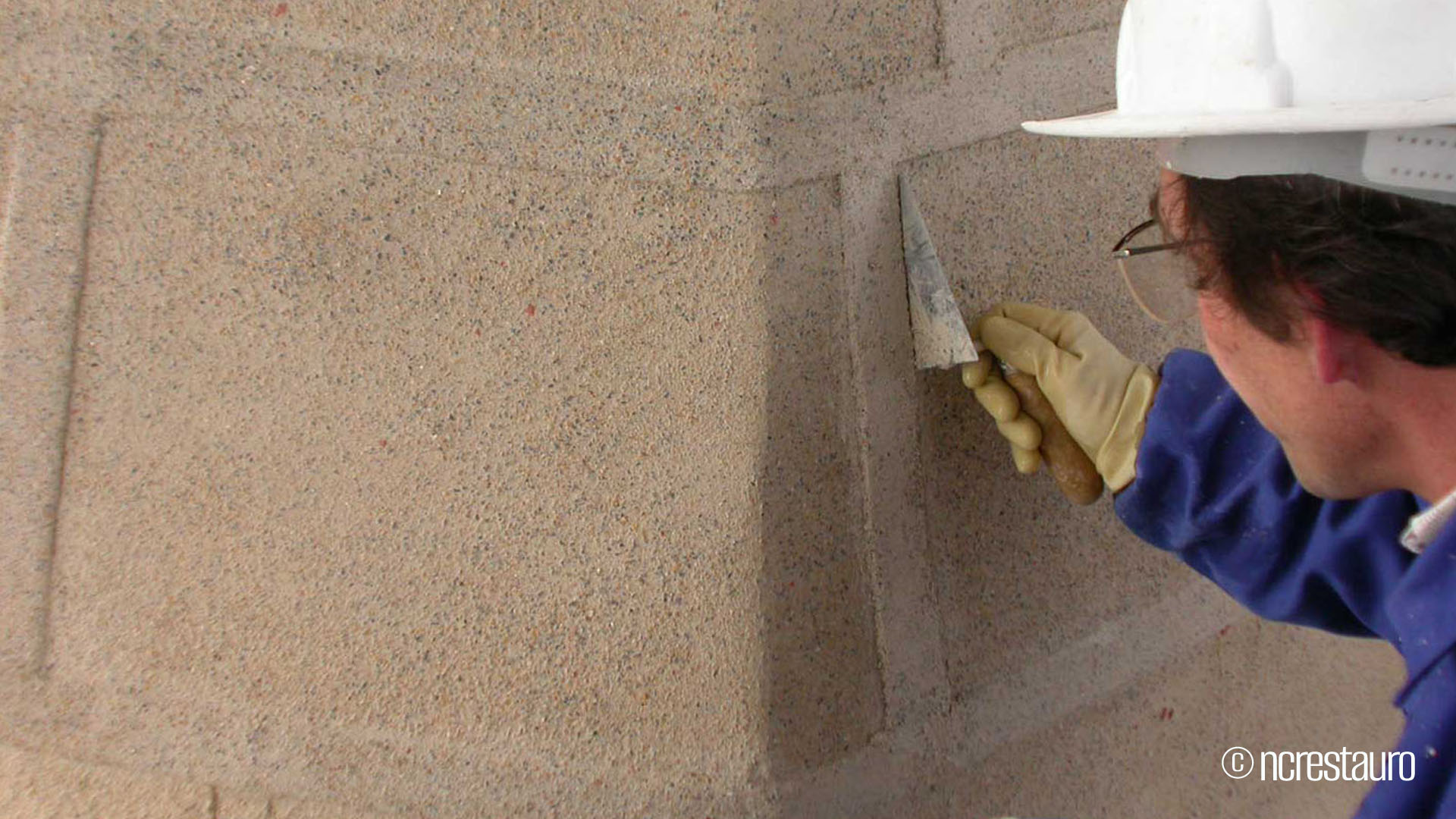

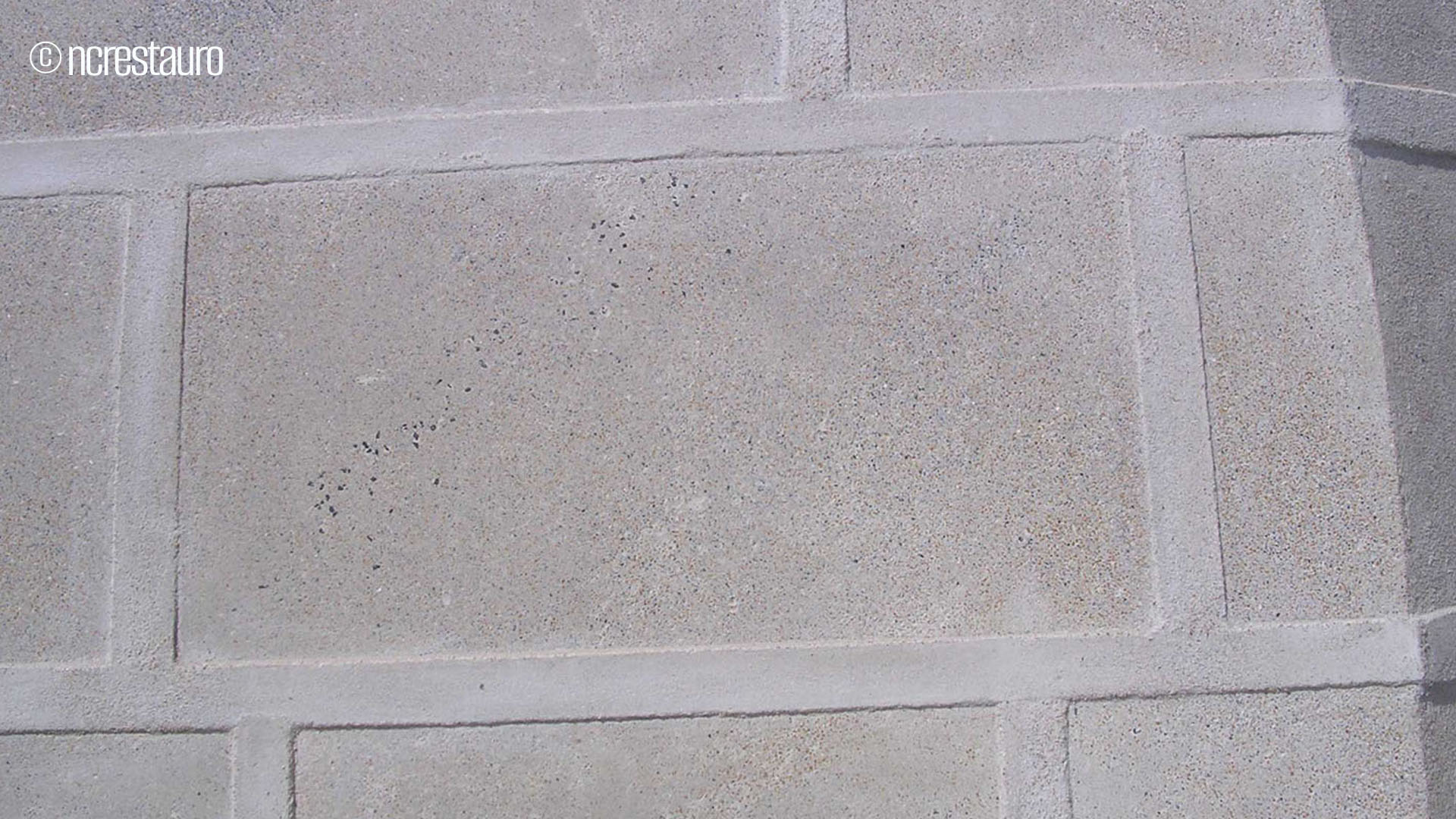

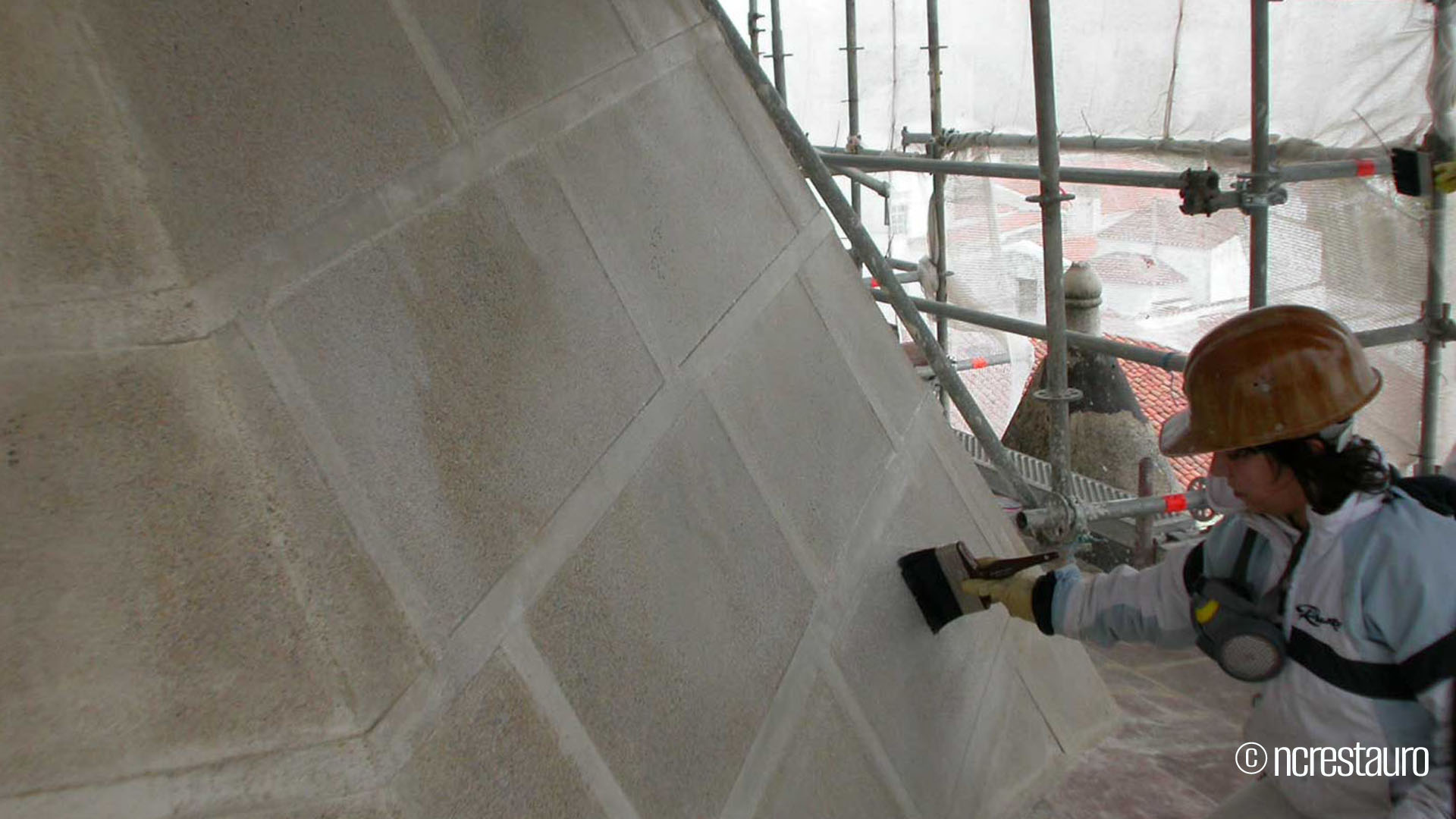

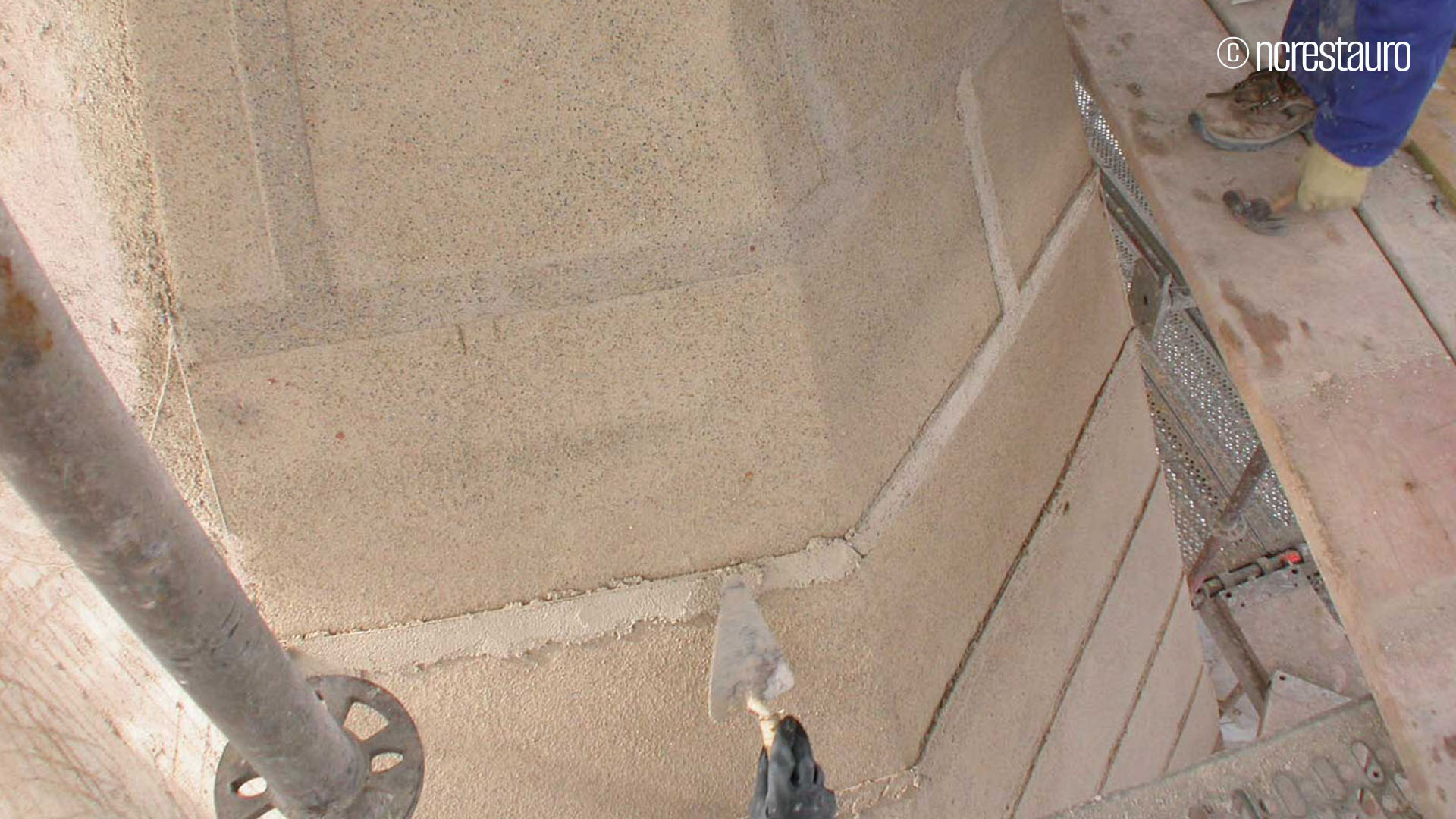

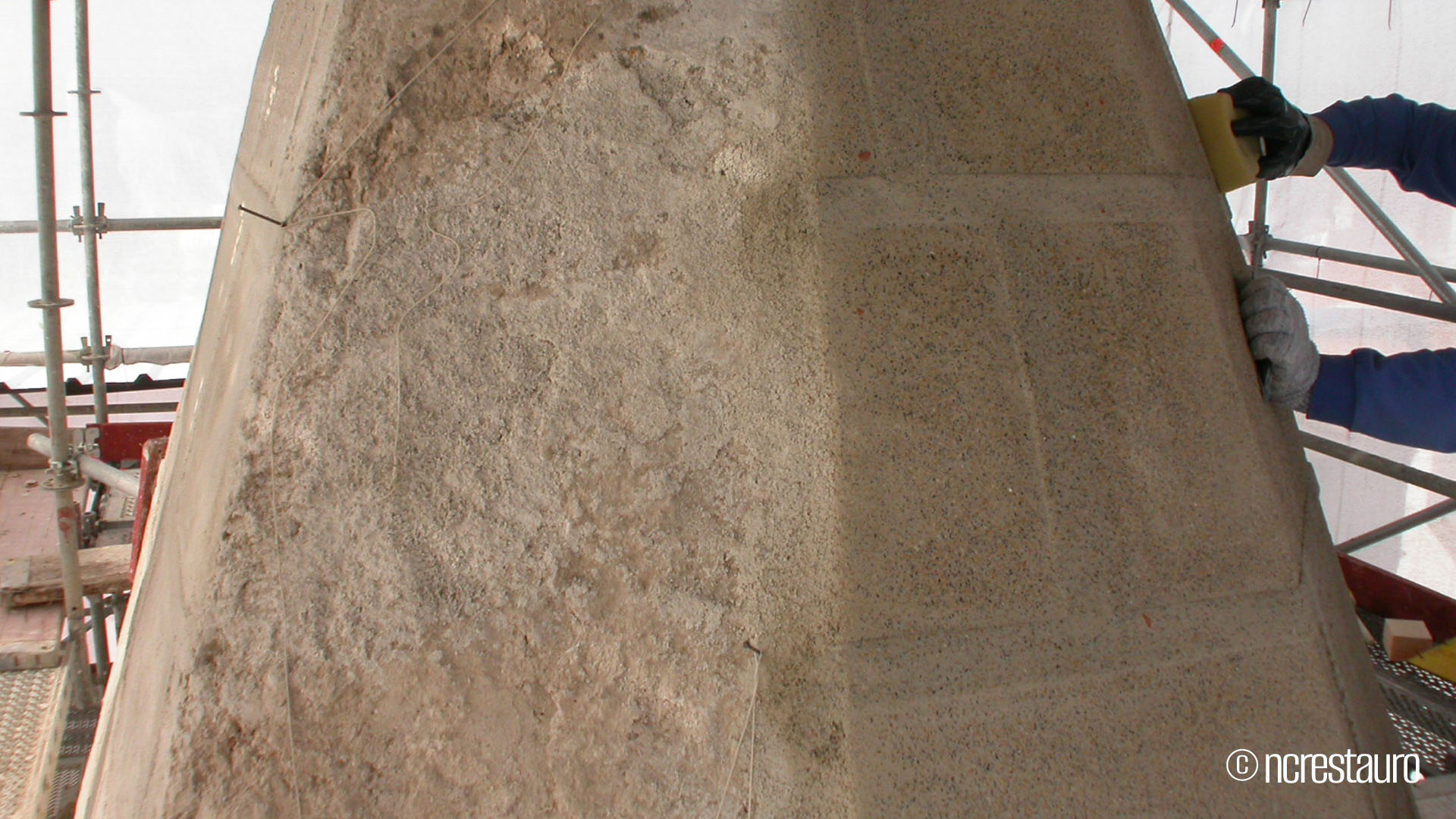

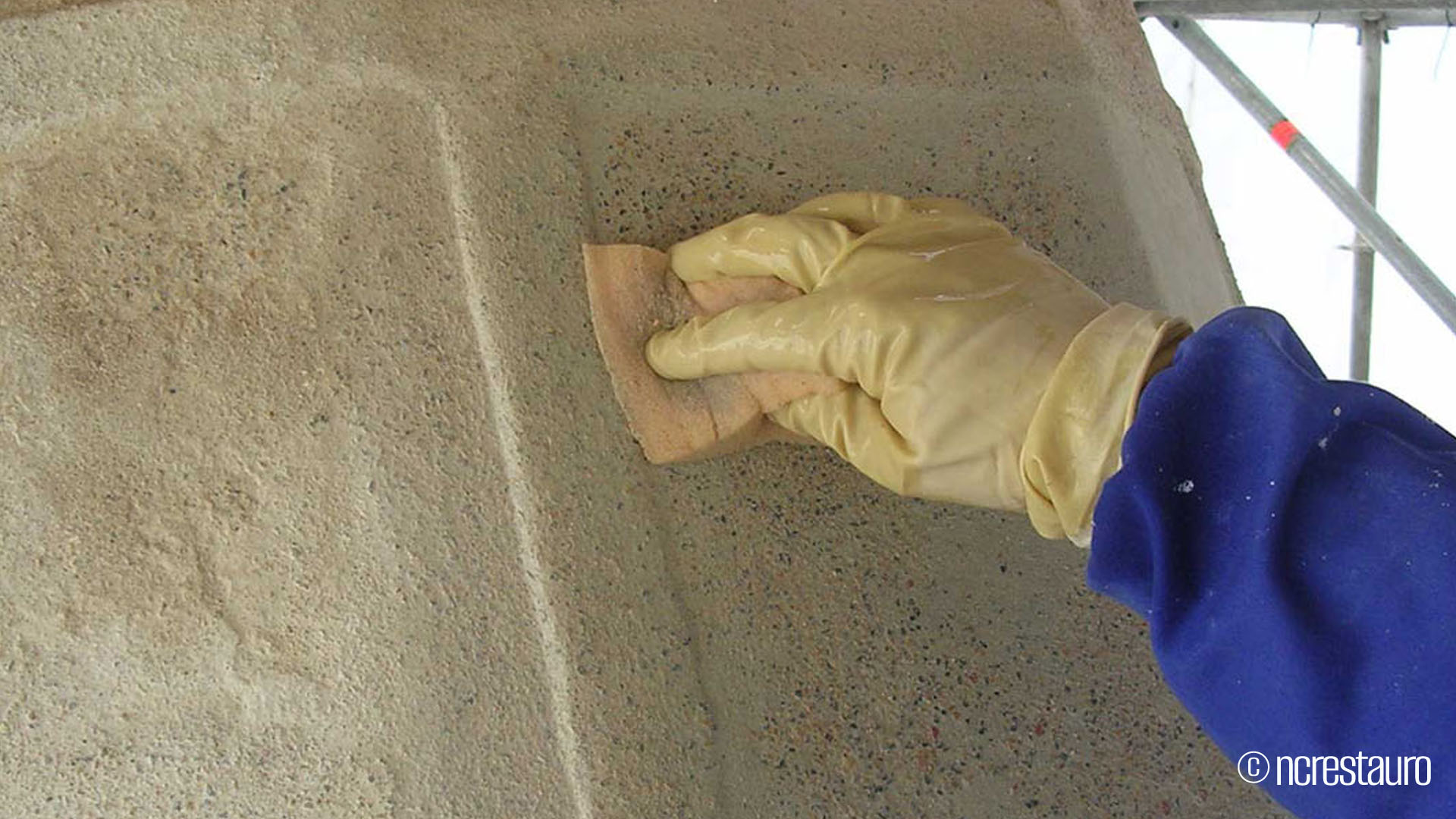

Investigation of traditional technical solutions for the formulation and application of mortars with raised joints for the plastering of the pyramid spire.
Presentation
"O Restauro de Património Religioso Arquitectónico e Integrado: Conservação em Espaços de Culto", 2as Jornadas da Pastoral dos Bens Culturais da Igreja, Almada, 2025;
"Conservation of the historical render in the Church of Nossa Senhora da Assunção in Elvas", Historical Mortars Conference – HMC2008, Lisboa, 2008;
"Demonstração de metodologia para o tratamento e reintegração de revestimentos parietais antigos", Oficina Técnicas Tradicionais de Revestimento: Da Teoria às Práticas de Conservação, Beja, 2007;
"Fingidos de Pedra com Argamassa" (módulo teórico-prático), Seminário “Reabilitação Urbana_Práticas concertadas”, Mértola, 2007.
